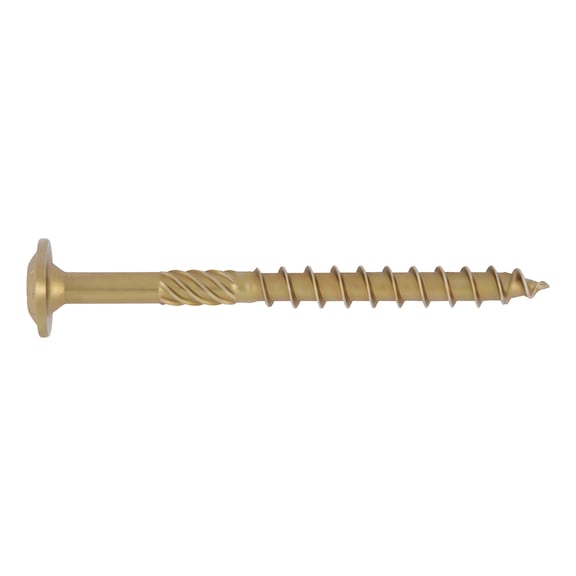

Timber Screw 10x120mm | Large Washer Head | Corrosion Resistant | AW50 Drive | @Pack of 50 | by Wurth
The Timber Screw 10x120mm features a large washer head and a corrosion-resistant yellow zinc plating, making it ideal for secure fastening in timber construction and woodworking. Designed for professional use, this screw includes an AW50 internal drive for optimum force transmission and a counter thread tip to minimize wood splitting. Perfect for modular construction, staircases, and structural woodwork.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timber Screw 10x120mm | Large Washer Head | Corrosion Resistant | AW50 Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 184810120
Alternatively Known As: Timber screw 10x120mm, Wood screw with washer head, AW50 drive timber screw, Yellow zinc plated wood screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 120 mm
- Thread length: 80 mm
- Head type: Round washer head
- Head diameter: 25.2 mm
- Head height: 4.6 mm
- Internal drive: AW50
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 6.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.6mm x 120mm x 25mm
- Weight: 0.15 kg
Key Features
- Large washer head for secure fastening
- Hardened steel with yellow zinc plating for corrosion resistance
- Partial coarse wood screw thread with end milling cutter
- AW50 internal drive for optimum force transmission
- Counter thread tip reduces wood splitting and blow-outs
- Asymmetric coarse thread for faster screwing and lower torque
- Bit lock accessory included
- Suitable for solid wood, laminated beams, CLT, OSB, chipboard, and derived timber products
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and fastening technique for structural integrity.
Applications
- Staircase construction
- Woodworking and carpentry
- Modular construction
- Timber and passive house construction
- Rafter insulation
- Element construction
- Timber construction
- Structural woodwork
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable hardened steel construction extends product life reducing waste
- Corrosion-resistant coating minimizes need for replacements
- Efficient screw design reduces installation time and energy use
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
The Wurth ASSY 30 SK timber screw 10x120mm is available for immediate purchase, ideal for timber construction and woodworking applications.
