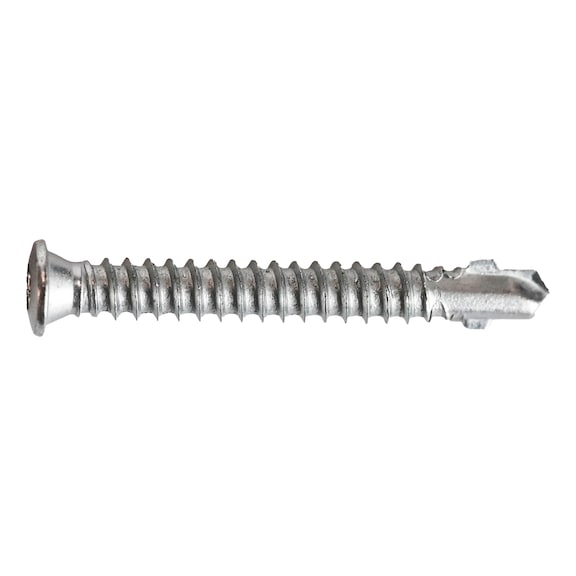

Timber to Metal Decking Screw | Bi-Metal A2 | RW Drive | Raised Countersunk Head | @Pack of 250 | by Wurth
Timber to Metal Decking Screws with bi-metal construction and RW drive system are perfect for direct timber to steel connections. Designed for durability with a Ruspert coating for enhanced corrosion resistance, these screws ensure a secure fit in both outdoor and indoor timber construction. Ideal for decking and substructure fastening, they provide an aesthetically pleasing finish with their raised countersunk head.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timber to Metal Decking Screw | Bi-Metal A2 | RW Drive | Raised Countersunk Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 505605560
Alternatively Known As: Timber to Metal Decking Screws, Bi-Metal Decking Screws, Raised Countersunk Head Screws, RW Drive Decking Screws
Technical Specifications
- Material: Bi-metal
- Surface: Flake zinc silver (Ruspert coating)
- Nominal diameter (d): 5.5 mm
- Length (l): 60 mm
- Head diameter (Ø dk): 8.5 mm
- Head height: 3 mm
- Drill tip length (lp): 8 mm
- Internal drive: RW20
- Head type: Raised countersunk head
- Max. attachment thickness: 41 mm
- Max. material thickness for wood: 48 mm
- Dimensions (H x L x W): 3mm x 60mm x 8.5mm
- Weight: 1.2 kg
Key Features
- Bi-metal stainless steel with hardened steel tip for durability
- Ruspert coating for enhanced corrosion resistance
- Raised countersunk head provides an aesthetically pleasing finish
- RW drive system offers more power due to larger contact area
- Precise positioning and perfect fit of drive bit for stability and one-handed operation
- Fewer bit changes required for a larger variation of screw diameters
- Compatible with AW drive bits of the same size
Professional Installation Requirements
- Installation should be performed using equipment with depth stop and claw coupling. Testing for usability in each application case is recommended to ensure optimal performance.
Applications
- Direct timber to steel connections
- Decking and substructure fastening
- Outdoor and indoor timber construction requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable bi-metal construction extends product life reducing waste
- Ruspert coating enhances corrosion resistance minimizing replacement frequency
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
The Wurth Wing-Type Timber to Metal Raised Countersunk Head Bi-Metal A2 Decking Screw with RW Drive 250 pcs is available for immediate purchase. Ideal for timber to steel fastening in construction and decking applications.
