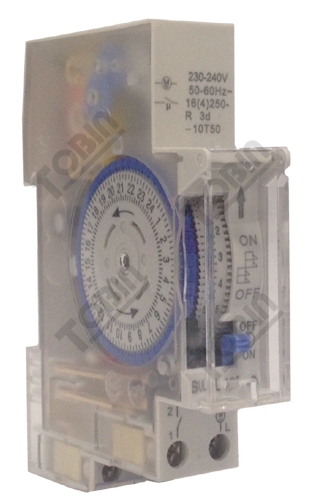

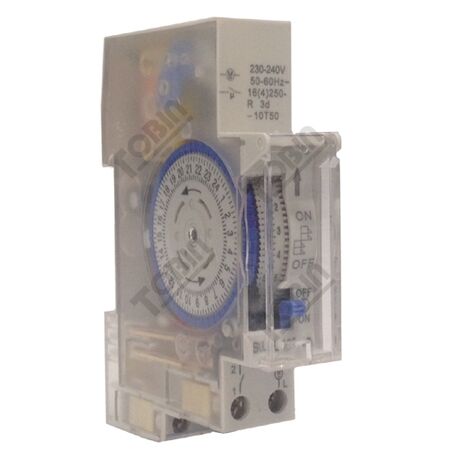

Time Clock Analogue 1 Channel | 24-Hour Timer | 70-Hour Battery Backup | DIN Rail Mountable | by Tobin
The Time Clock Analogue 1 Channel is a reliable 24-hour timer designed for industrial and commercial applications. With a compact 18mm module size and a robust 70-hour battery backup, it ensures your settings are maintained during power outages. Perfect for automation systems and DIN rail mounting, this time clock is built for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Time Clock Analogue 1 Channel | 24-Hour Timer | 70-Hour Battery Backup | DIN Rail Mountable | by Tobin
Brand: Tobin
SKU: SUL180A
Alternatively Known As: Analogue Time Switch, 24 Hour Timer, DIN Rail Time Clock, Battery Backup Timer
Technical Specifications
- Voltage: 240V
- Time Range: 24 hours
- Battery Backup: 70 hours
- Mounting: DIN rail
- Module Size: 1 module (18mm)
- Dimensions (H x L x W): 90mm x 60mm x 18mm
- Weight: 0.2 kg
Key Features
- 1 module size for compact installation
- Operates at 240V
- 24-hour analogue time clock
- 70-hour battery backup to maintain settings during power outages
- DIN rail mountable for easy integration into control panels
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Industrial and commercial electrical timing control
- Automation systems requiring 24-hour time control
- DIN rail mounting for electrical panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Battery backup reduces risk of time loss and energy waste due to incorrect timing
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin Time Clock Analogue 1 Channel 18mm 24Hr Battery is available now for immediate purchase. Ideal for industrial and commercial timing control applications.
