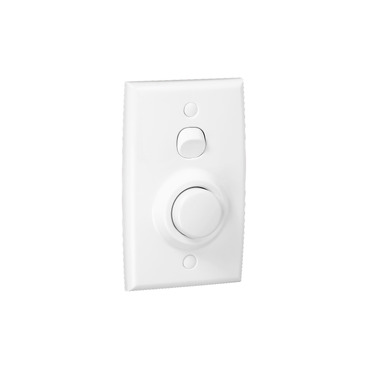

Time Delay & Extra Switch | Adjustable Up to 10 Minutes | Mechanical Rotary Timer | White Electric | @Pack of 1 | by Clipsal
The Time Delay & Extra Switch is designed for automatic control of exhaust fans and other electrical loads, featuring an adjustable time delay of up to 10 minutes. Ideal for residential and commercial applications, this switch includes an extra manual switch for added convenience. With a reliable mechanical rotary timer and compatibility with standard Clipsal wall plates, it enhances energy efficiency by reducing unnecessary power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Time Delay & Extra Switch | Adjustable Up to 10 Minutes | Mechanical Rotary Timer | White Electric | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: CLI319XWE
Alternatively Known As: Clipsal timer switch, exhaust fan timer, Clipsal 319XWE, time delay switch, Clipsal time delay module
Technical Specifications
- Type: Time delay switch with extra manual switch
- Voltage: 250V AC
- Current Rating: 10A
- Time Delay Range: Adjustable up to 10 minutes
- Mounting: Suits standard Clipsal wall plates
- Colour: White Electric (WE)
- Operation: Mechanical rotary timer
- Dimensions (H x L x W): 23mm x 50mm x 23mm
- Weight: 0.1 kg
Key Features
- Provides automatic time delay switching for exhaust fans and other loads
- Includes an extra switch for manual override or additional control
- Compatible with standard Clipsal wall plates
- Simple rotary dial for time adjustment
- Reliable mechanical timer operation
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Bathrooms, laundries, and other areas requiring timed exhaust fan operation
- Commercial: Offices, restrooms, and utility rooms for automatic fan or light control
- General: Any location where timed switching of electrical loads is needed
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces unnecessary energy consumption by automatically switching off loads after a set period
- Helps improve energy efficiency in homes and commercial buildings
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal 319XWE Time Delay & Extra Switch is available for immediate purchase. Ideal for automatic control of exhaust fans and other timed electrical loads in residential and commercial settings.
