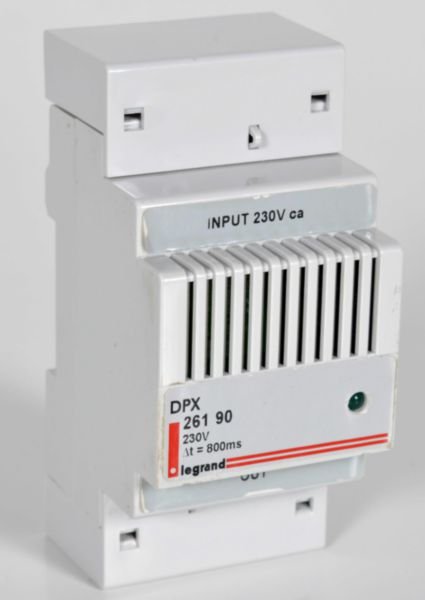

Time-lag Module for DPX³/DPX³-I | 800ms Delay | 400V Operation | Compact 3-Module Design | @Each of 1 | by Legrand
The Time-lag module for DPX³/DPX³-I is designed to enhance protection in electrical switchboards, featuring an 800ms time-delay to prevent false tripping during AC supply microbreaks. Ideal for industrial and commercial applications, this compact 3-module unit operates at 400V and allows for remote tripping of DPX-IS circuit breakers, ensuring reliable performance in critical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Time-delay setting: 0.8 seconds
- Switching function: Time-delay dropped out
- Number of modules: 3
- Voltage rating: 400 V~
- No auxiliary contacts (normally open, normally closed, or change-over)
- Dimensions (H x L x W): 90mm x 70mm x 54mm
- Weight: 0.3 kg
Key Features
- Time-lag of 800 ms to prevent false tripping during AC supply microbreaks
- Allows remote tripping of DPX-IS circuit breakers
- Designed for use with DPX³/DPX³-I 160/250 and 125/250 HP models
- Operates at 400 V~
- Compact 3-module size
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX circuit breakers.
Applications
- Used in switchboards and power cabinets for time-delay tripping
- Suitable for modular switches and circuit breakers in industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce unnecessary power interruptions, improving energy efficiency and system reliability
Warranty Information
Legrand standard warranty applies, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for enhancing protection and control in industrial and commercial electrical switchboards.
