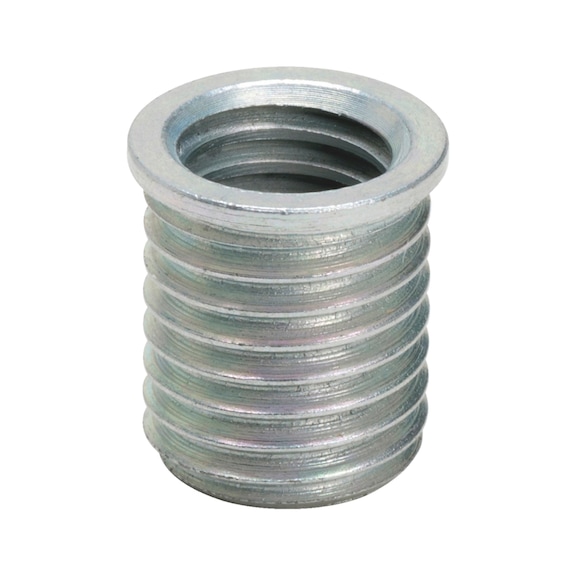

TIME SERT Threaded Bushing Nut M10x1.25 | Zinc Plated Steel | Reliable Thread Repair | by Wurth
The TIME SERT Threaded Bushing Nut M10x1.25 is designed for effective thread repairs in thin-walled materials and weak walls. Made from zinc plated steel, it ensures impermeability to water, oil, and other liquids, making it ideal for industrial applications. With a self-locking design and accurate positioning, this nut guarantees reliable repairs even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TIME SERT Threaded Bushing Nut M10x1.25 | Zinc Plated Steel | Reliable Thread Repair | by Wurth
Brand: Wurth
SKU: 663101250
Alternatively Known As: Threaded Insert Nut, Thread Repair Bushing, Threaded Thread Repair Insert, M10 Threaded Bushing, Thread Repair Nut
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1.25
- Length: 9 mm
- Design: Metric fine thread
- Surface: Zinc plated
- Material: Steel
- Dimensions (H x L x W): 9mm x 9mm x 10mm
- Weight: 0.02 kg
Key Features
- Safe working including on weak walls
- Suitable for very thin-walled materials due to synchronously running threads
- Reliable repairs where only a few thread turns are available
- Impermeable to media such as water, oil, other liquids, and compressed gases
- Self-locking with automatic shaping of not yet fully formed threads when screwing in
- Nut guaranteed not to twist out even without bonding
- Accurate positioning in the workpiece with collar design requiring no additional securing
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with thread repair procedures to ensure proper fit and sealing.
Applications
- Repairing defective threads in machinery and equipment
- Use in thin-walled materials and weak walls
- Pressure-sealed thread repairs for water, oil, liquids, and compressed gases
- Industrial and mechanical maintenance requiring reliable thread repair
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extends the life of machinery and components by enabling thread repairs instead of full replacements
- Reduces waste by avoiding scrapping of parts with damaged threads
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth TIME SERT Threaded Bushing Nut M10x1.25x9 is available for immediate purchase, ideal for industrial and mechanical thread repair applications.
