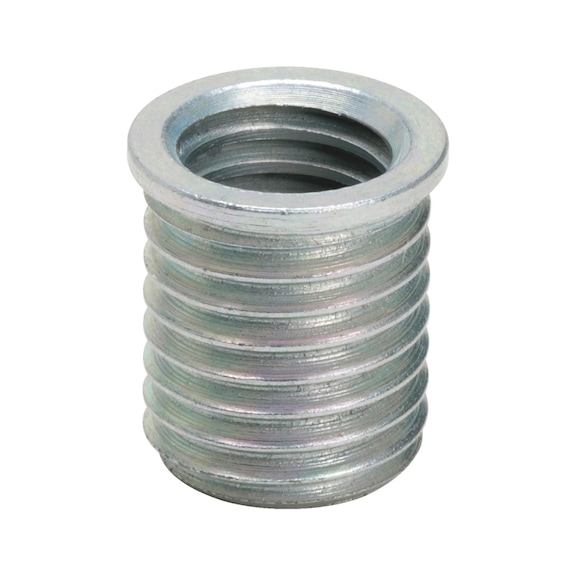

TIME SERT Threaded Bushing Nut M10 x 1.25 x 15mm | Zinc Plated Steel | Self-Locking Design | by Wurth
The TIME SERT Threaded Bushing Nut M10 x 1.25 x 15mm is perfect for repairing defective threads in machinery and equipment. Designed for thin-walled materials, it features a self-locking design and is impermeable to water, oil, and other liquids. Ideal for professional installations, this nut ensures reliable repairs with minimal thread turns, extending the life of your components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TIME SERT Threaded Bushing Nut M10 x 1.25 x 15mm | Zinc Plated Steel | Self-Locking Design | by Wurth
Brand: Wurth
SKU: 663101251
Alternatively Known As: Threaded Insert Nut, Thread Repair Bushing, Threaded Thread Insert, M10 Threaded Bushing
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1.25
- Length: 15 mm
- Design: Metric fine thread
- Surface: Zinc plated
- Material: Steel
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Safe working on weak and thin-walled materials due to synchronously running threads
- Reliable repairs with only a few thread turns available
- Impermeable to media such as water, oil, other liquids, and compressed gases
- Self-locking with automatic shaping of not fully formed threads when screwing in
- Nut guaranteed not to twist out even without bonding
- Accurate positioning with collar design requiring no additional securing
Professional Installation Requirements
- Installation should be performed by a trained technician or professional to ensure proper thread repair and sealing.
Applications
- Repairing defective threads in machinery and equipment
- Use in thin-walled materials and weak walls
- Pressure-sealed thread repairs for water, oil, liquids, and compressed gases
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extends the life of components by enabling thread repairs instead of replacements
- Reduces waste by avoiding scrapping of parts with damaged threads
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth TIME SERT Threaded Bushing Nut M10 x 1.25 x 15 mm is available for immediate purchase, ideal for industrial and mechanical thread repair applications.
