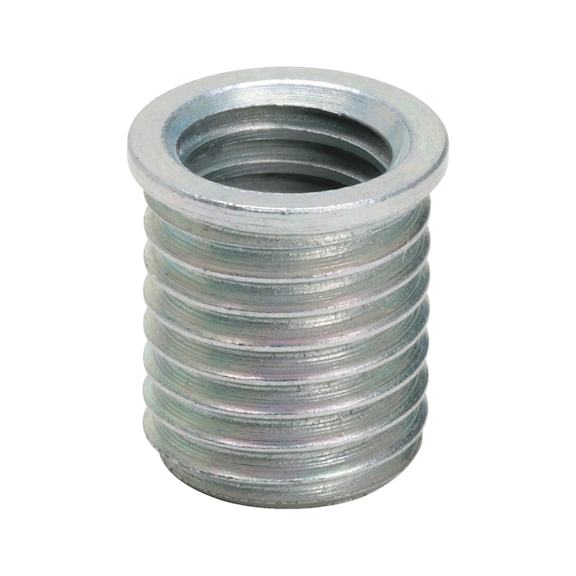

TIME SERT Threaded Bushing Nut M8x1.25 | Zinc Plated Steel | Thin-Walled Design | by Wurth
The TIME SERT Threaded Bushing Nut M8x1.25 is designed for reliable thread repairs in thin-walled materials and weak walls. With a zinc-plated steel construction, it ensures impermeability to water, oil, and other liquids, making it ideal for industrial applications. This nut guarantees accurate positioning and self-locking features, providing dependable repairs where only a few thread turns are available.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TIME SERT Threaded Bushing Nut M8x1.25 | Zinc Plated Steel | Thin-Walled Design | by Wurth
Brand: Wurth
SKU: 663812511
Alternatively Known As: Threaded Insert Nut, Thread Repair Bushing, Threaded Sleeve Nut, Thread Repair Insert
Technical Specifications
- Thread type x nominal diameter x pitch (My): M8 x 1.25
- Length (L): 11.7 mm
- Design: Metric nominal thread
- Surface: Zinc plated
- Material: Steel
- Dimensions (H x L x W): 11.7mm x 11.7mm x 8mm
- Weight: 0.05 kg
Key Features
- Safe working including on weak walls
- Very thin-walled due to synchronously running threads
- Reliable repairs where only a few thread turns are available
- Impermeable to media such as water, oil, other liquids, and compressed gases
- Self-locking with automatic shaping of not yet fully formed threads when screwing in
- Nut guaranteed not to twist out even without bonding
- Accurate positioning in the workpiece with collar, no additional securing necessary
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with thread repair procedures to ensure proper fit and sealing.
Applications
- Repairing defective threads in machinery and equipment
- Use in thin-walled materials and weak walls
- Pressure-sealed thread repairs for water, oil, liquids, and compressed gases
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extends the life of machinery by enabling thread repairs instead of replacements
- Reduces waste by avoiding scrapping of parts with damaged threads
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth TIME SERT Threaded Bushing Nut M8x1.25x11.7 is available for immediate purchase, ideal for industrial and mechanical thread repair applications.
