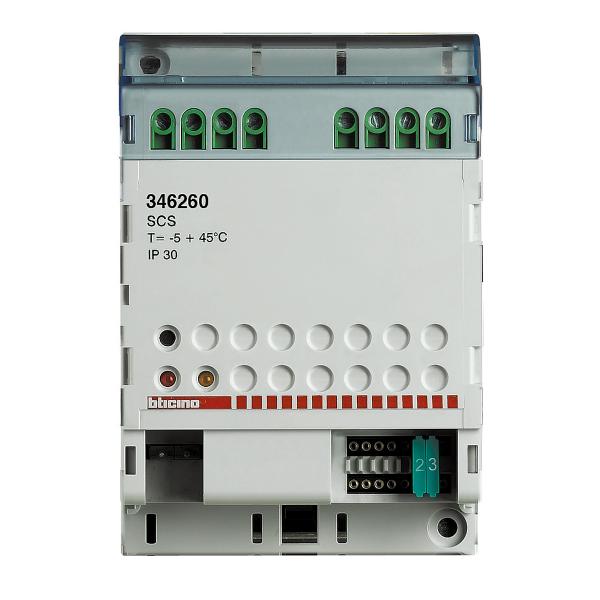

Timed Door Lock Actuator 4 DIN 18-27VDC Legrand
Legrand timed door lock actuator, 4 DIN modules, 18-27VDC SCS BUS, 250mA. Controls electric door release in entry systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply: 18 – 27 Vdc from SCS BUS
- Stand by absorption: 5mA
- Maximum operating absorption: 250mA
- Operating temperature range: 5 – 40 °C
- Housing: 4 DIN modules
- Dimensions (H x L x W): 73mm x 110mm x 96mm
- Weight: 0.181 kg
Key Features
- Timed door lock actuator with 4 DIN modular housing
- Power supply from SCS BUS: 18 – 27 Vdc
- Stand by absorption: 5mA
- Max. operating absorption: 250mA
- Operating temperature: 5 – 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation specialist to ensure compliance with electrical safety standards and proper integration with door entry systems.
Applications
- Switching lights
- Opening gates
- Managing electromagnetic door locks
- Timed door opening
- Monitoring door lock status with NC contact
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 5mA standby absorption
- Efficient control reduces unnecessary power use in door locking systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's warranty policy for details.
Available Now
The Bticino Timed Door Lock Actuator by Legrand is available now for immediate purchase. Ideal for automation and door entry systems in residential and commercial buildings.
