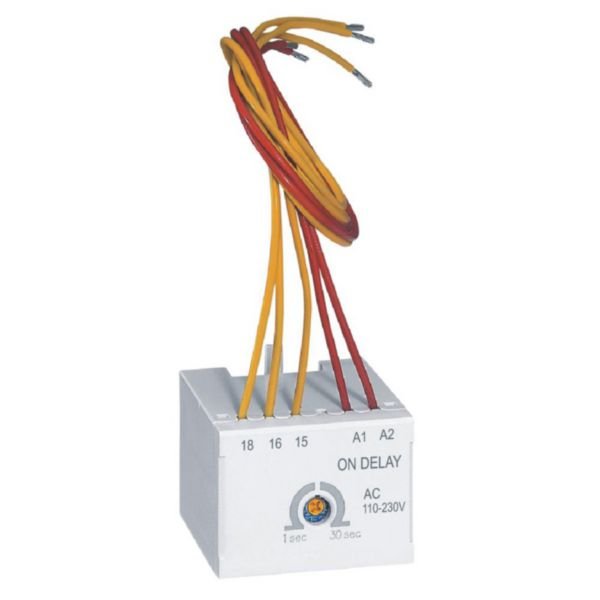

Timer CTX3 ON Delay | 1-30 Seconds Adjustable | 110-230V AC/DC | by Legrand
The Timer CTX3 ON Delay is designed for precise motor control, featuring an adjustable delay time from 1 to 30 seconds and a voltage range of 110-230V AC/DC. Ideal for industrial and tertiary applications, this electronic timer ensures efficient operation by reducing energy waste, making it a reliable choice for motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated voltage: 110-230V AC/DC (50/60Hz)
- Mounting: Front of CTX3 3P contactors (9A to 150A) and 4P contactors (40A to 135A)
- Switching function: Operating delayed ON
- Setting time range: 1 to 30 seconds
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Operating principle: Electronic
- Dimensions (H x L x W): 90mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Rated voltage 110V to 220V AC (50/60Hz) and DC
- Mounts on the front of CTX3 3P contactors from 9A to 150A and 4P contactors from 40A to 135A
- Operating delay time adjustable from 1 to 30 seconds
- Electronic operating principle for reliable timing control
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control systems and Legrand CTX3 contactors.
Applications
- Tertiary and industrial motor control and protection installations
- Mounting on CTX3 contactors for delayed ON switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electronic timer reduces energy waste by ensuring motors and equipment operate only when needed
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Timer CTX3 ON Delay 1-30S 110-230V AC/DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
