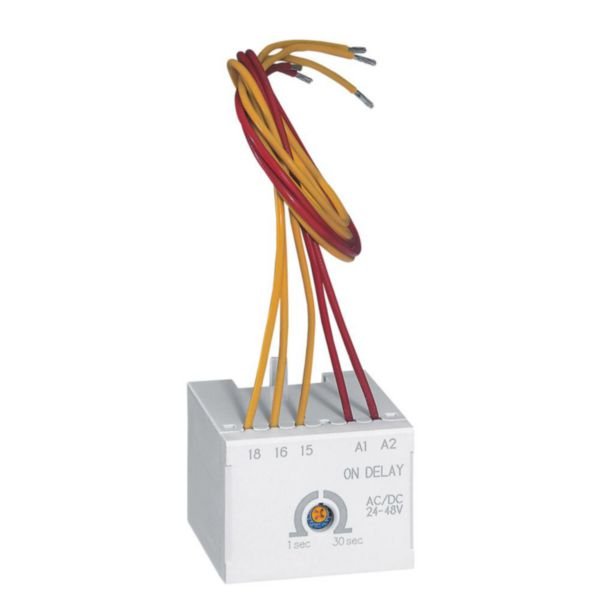

Timer CTX3 ON Delay | 1-30 Seconds | 24-48V AC/DC | Electronic Operating Principle | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416870
$238.10 List price: $296.70
+ −
30 Days Return Delivery Options
The Timer CTX3 ON Delay is designed for precise motor control, featuring an adjustable delay time from 1 to 30 seconds and a rated voltage range of 24-48V AC/DC. Ideal for industrial and tertiary applications, this electronic timer ensures reliable performance when mounted on CTX3 contactors, minimizing energy waste and enhancing operational efficiency.

Product Name/Title: Timer CTX3 ON Delay | 1-30 Seconds | 24-48V AC/DC | Electronic Operating Principle | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416870

Alternatively Known As: CTX3 ON Delay Timer, Legrand Electronic Timer, Motor Contactor Timer, Delay Timer 24-48V

Technical Specifications
  • Rated voltage: 24V to 48V AC (50/60Hz) and DC
  • Time setting range: 1 to 30 seconds
  • Mounting: Front of CTX3 3P contactors (9A to 150A) and 4P contactors (40A to 135A)
  • Switching function: Operating delayed
  • Number of contacts (NO, NC, change-over): 0
  • Operating principle: Electronic
  • Dimensions (H x L x W): 60mm x 70mm x 35mm
  • Weight: 0.1 kg
Key Features
  • Operating delay timer with adjustable time setting from 1 to 30 seconds
  • Rated voltage range from 24V to 48V AC (50/60Hz) and DC
  • Designed for mounting on the front of CTX3 3-pole contactors (9A to 150A) and 4-pole contactors (40A to 135A)
  • Electronic operating principle for reliable performance
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with motor control systems and Legrand CTX3 contactors to ensure safety and compliance.
Applications
  • Tertiary and industrial motor control and protection installations
  • Mounting on CTX3 contactors for delayed switching operations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Electronic timer reduces energy waste by ensuring motors and equipment operate only when needed
  • Durable design minimizes replacement frequency and electronic waste
Warranty Information

Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.

Available Now

The Legrand Timer CTX3 ON Delay 1-30S 24-48V AC/DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
