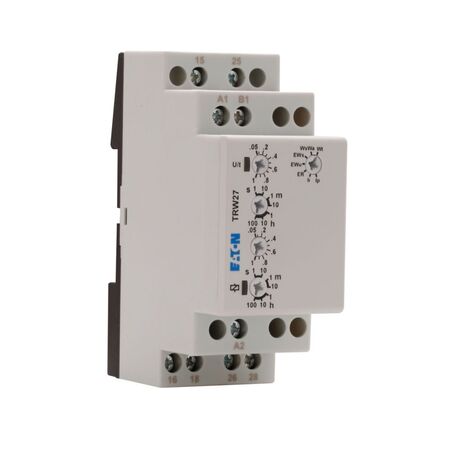

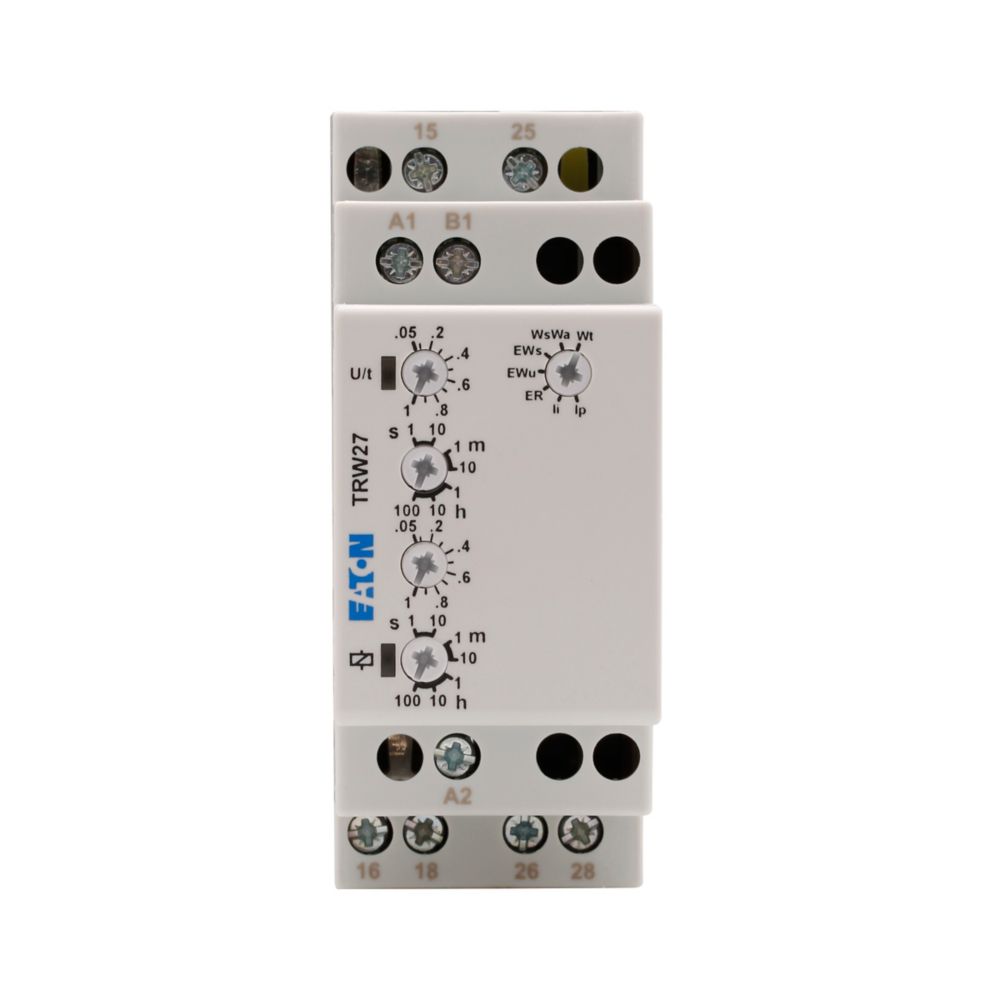

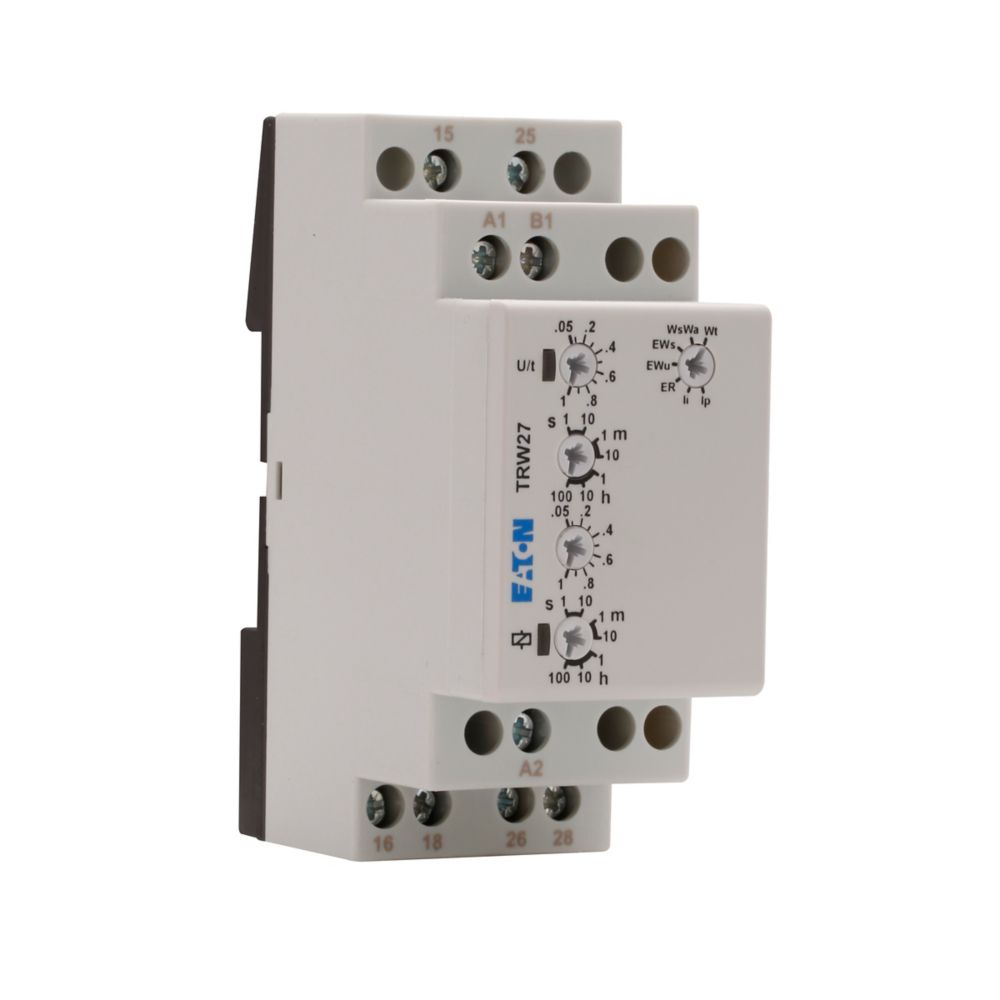

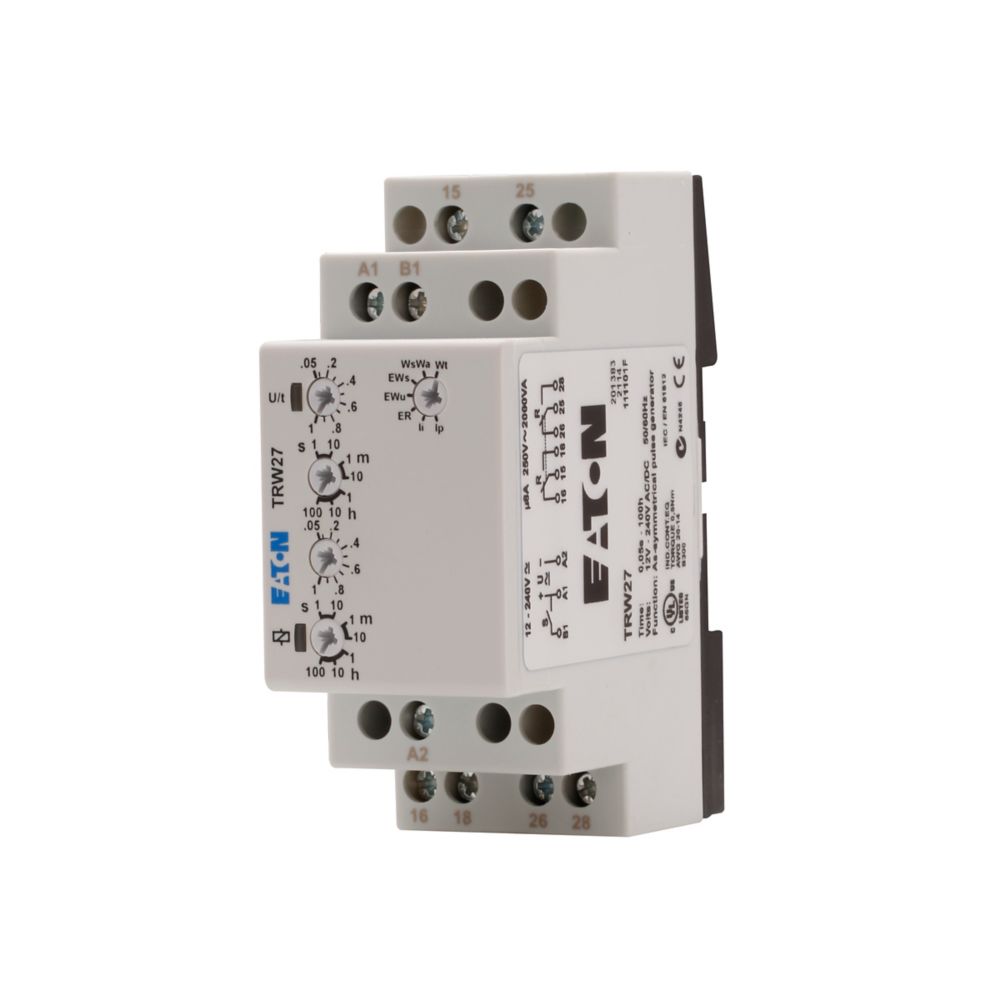

Timer DIN Mount ON/OFF Cyclic 24-240VAC | 7-Function Universal Relay | DPDT Contact Configuration | IP40 Rated | @Each by Eaton
The Timer DIN Mount ON/OFF Cyclic 24-240VAC is a versatile 7-function universal timing relay designed for industrial automation and electrical control systems. With a compact DIN rail mount and DPDT contact configuration, it offers multiple timing modes for precise control. Ideal for machinery requiring cyclic ON/OFF timing, this relay ensures reliable operation in various applications while complying with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timer DIN Mount ON/OFF Cyclic 24-240VAC | 7-Function Universal Relay | DPDT Contact Configuration | IP40 Rated | @Each by Eaton
Brand: Eaton
SKU: TRW27
Alternatively Known As: Eaton TR Timing Relay, TRW27 Timer Relay, DIN Rail Timer Relay, Universal Timing Relay
Technical Specifications
- Input Voltage: 12-240 Vac/dc
- Contact Configuration: DPDT
- Functions: Asymmetrical flasher-pause or pulse first, ON delay, pulse sequence monitoring, single shot leading or trailing edge, voltage controlled and control contact, ON/OFF delay with control contact
- Frequency Rating: 50-60 Hz
- Enclosure Rating: IP40
- Enclosure Material: Self-extinguishing plastic
- Mounting Method: Compact DIN rail
- Dimensions (H x L x W): 87mm x 65mm x 35mm
- Weight: 0.11 kg
Key Features
- 7-function universal timing relay with multiple timing modes
- Input voltage range: 12-240 Vac/dc
- Compact DIN rail mount design
- DPDT contact configuration for versatile switching
- IP40 rated enclosure with self-extinguishing plastic housing
- Frequency rating: 50-60 Hz
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Industrial automation control systems
- Timing control in electrical panels
- Process control and monitoring
- Machinery and equipment requiring cyclic ON/OFF timing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy-efficient operation minimizes power consumption during timing cycles
Warranty Information
One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first, as per Eaton Selling Policy 25-000.
Available Now
The Eaton TRW27 7-function universal timing relay is available for immediate purchase, ideal for industrial and commercial electrical timing control applications.
