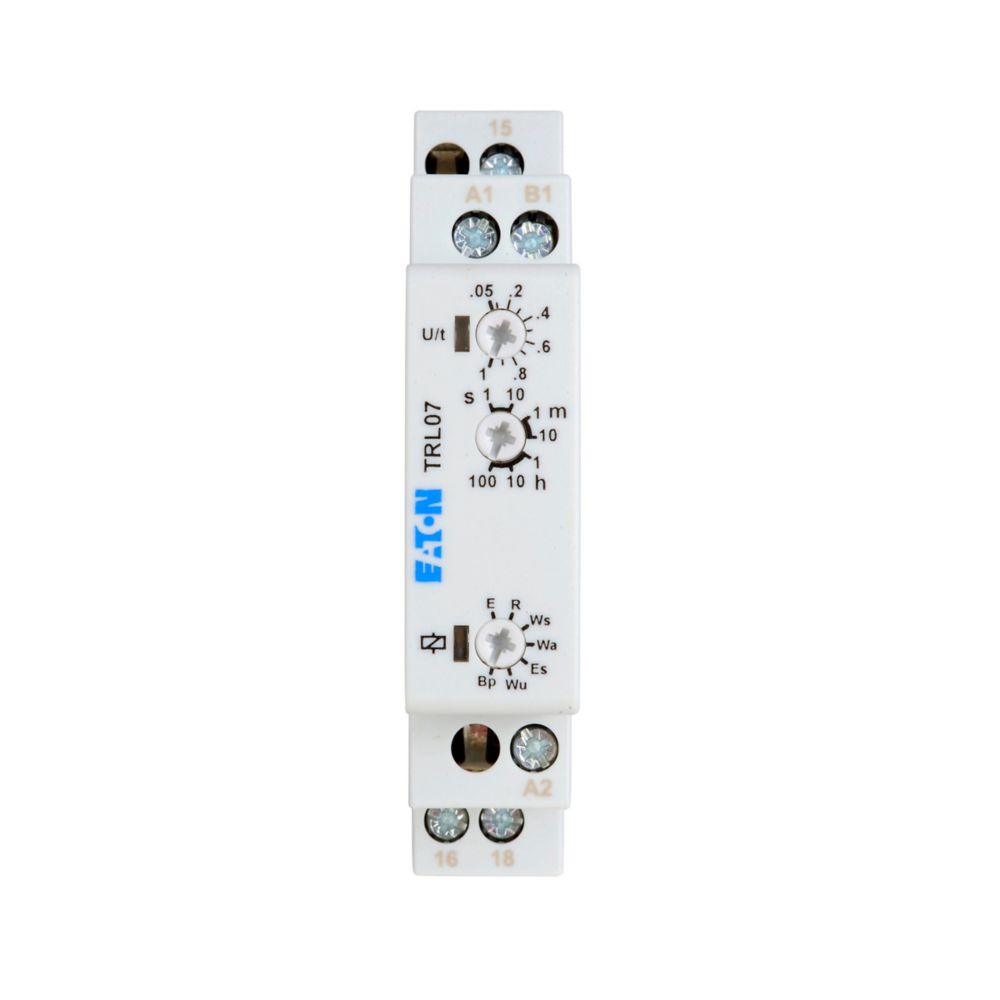

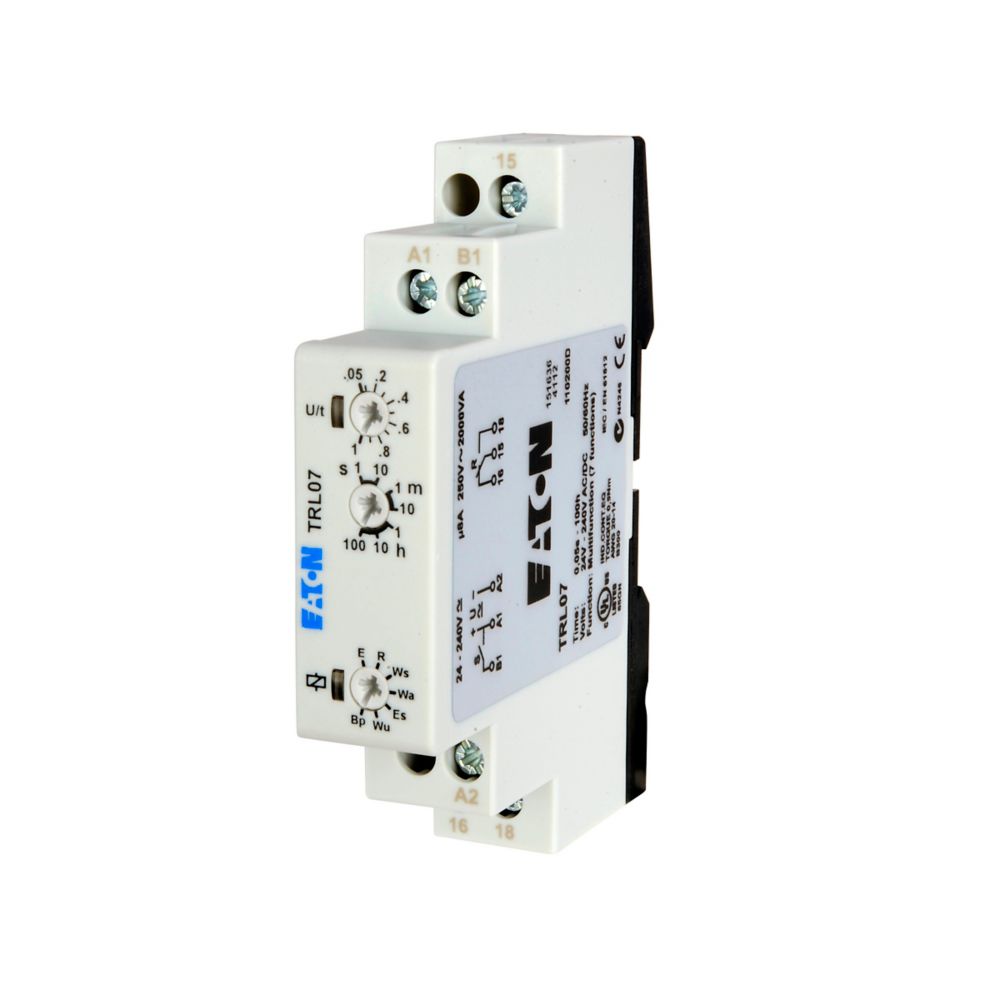

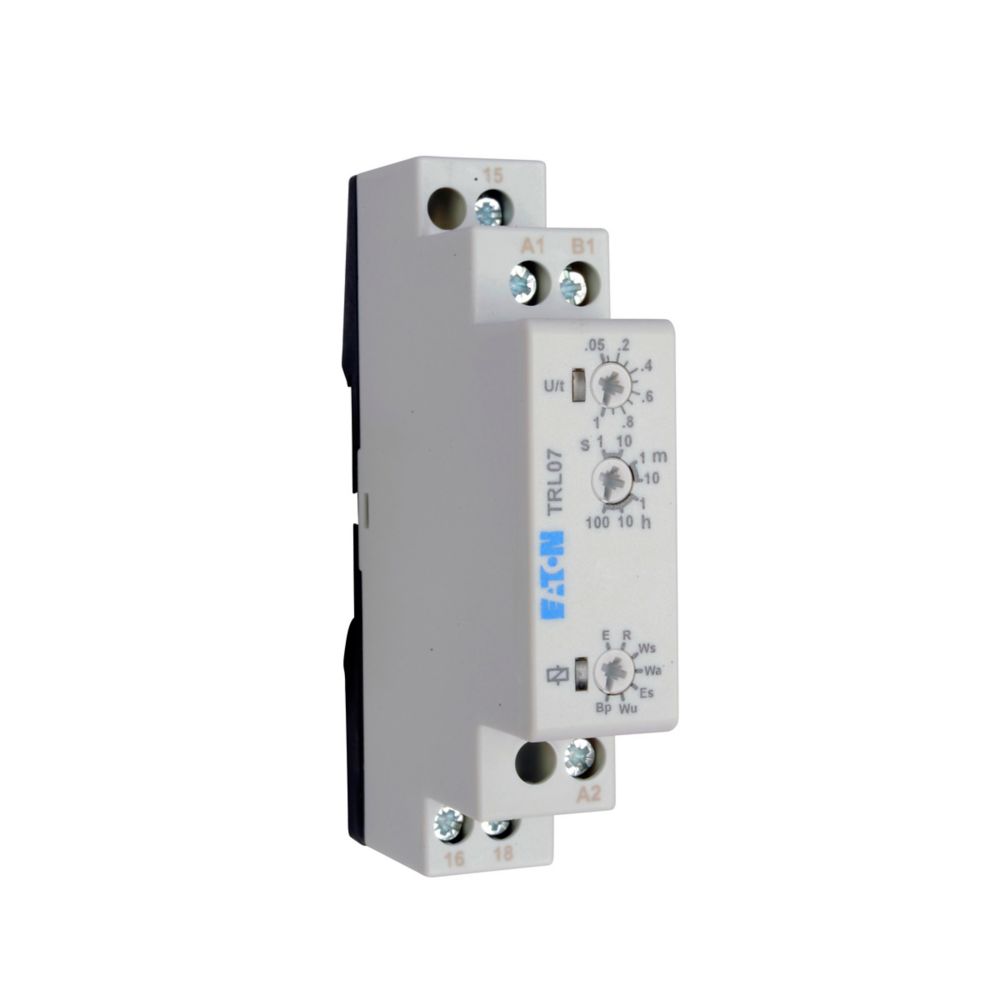

Timer DIN Rail Mount 7 Function | 24-240VA Input | DPDT Contact Configuration | IP40 Rated | @Each by Eaton
The Timer DIN Rail Mount 7 Function is designed for versatile timing control in industrial automation systems. With a wide input voltage range of 24-240VA and seven timing functions including ON/OFF delay and flasher, it’s perfect for machinery requiring precise time delays. Built for reliability, this compact DIN rail mount timer features an IP40 rated enclosure, ensuring protection against solid objects and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timer DIN Rail Mount 7 Function | 24-240VA Input | DPDT Contact Configuration | IP40 Rated | @Each by Eaton
Brand: Eaton
SKU: TRL27
Alternatively Known As: Eaton TR Timing Relay, TRL27 Timer Relay, DIN Rail Timer Relay, Universal Timing Relay
Technical Specifications
- Input Voltage: 12-240 Vac/dc
- Frequency Rating: 50-60 Hz
- Time Delay Range: 0.05 seconds to 100 hours
- Contact Configuration: DPDT
- Enclosure Rating: IP40
- Enclosure Material: Self-extinguishing plastic
- Mounting Method: Compact DIN rail mount
- Functions: ON/OFF delay, single shot leading or trailing edge, voltage controlled and control input, power triggered, trailing edge OFF, ON delay control signal start, flasher-pause first
- Dimensions (H x L x W): 87mm x 65mm x 35mm
- Weight: 0.11 kg
Key Features
- 7 timing functions including ON/OFF delay, single shot, flasher, and more
- Time delay range from 0.05 seconds to 100 hours
- DPDT (Double Pole Double Throw) contact configuration
- Compact DIN rail mount design for easy installation
- Wide input voltage range: 12-240 Vac/dc
- IP40 rated enclosure for protection against solid objects
- Self-extinguishing plastic enclosure material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial automation control systems
- Timing control in electrical circuits
- Machinery and equipment requiring time delay functions
- Building automation and control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient operation minimizes power consumption
Warranty Information
One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first, as per Eaton Selling Policy 25-000.
Available Now
The Eaton TRL27 7-function universal timing relay is available for immediate purchase, ideal for industrial and automation control applications.
