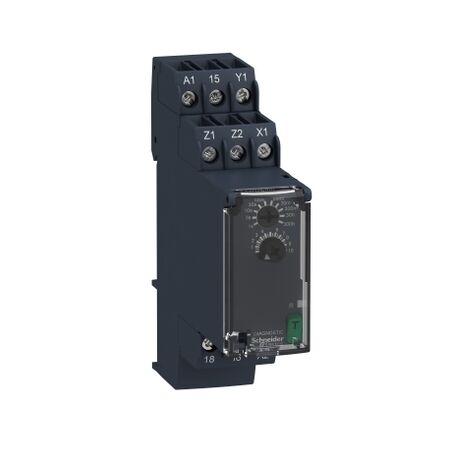

Timer Power Off Delay Relay | 0.05s to 300h Timing Range | 24–240V AC/DC | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Timer Power Off Delay Relay is designed for precise timing control, featuring a selectable timing range from 0.05 seconds to 300 hours and multi-voltage operation of 24–240V AC/DC. Ideal for industrial automation, lighting control, and HVAC systems, this relay ensures energy efficiency by allowing equipment to run only when necessary, making it a perfect choice for electrical control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timer Power Off Delay Relay | 0.05s to 300h Timing Range | 24–240V AC/DC | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R1CMR
Alternatively Known As: off-delay timer relay, time delay relay, Clipsal timer relay, SCHRE22R1CMR, Schneider Electric timer relay
Technical Specifications
- Timing function: Off-delay (delay on release)
- Timing range: 0.05 seconds to 300 hours (selectable)
- Supply voltage: 24–240V AC/DC
- Output contacts: 1 C/O (SPDT), 8A at 250V AC
- Mounting: DIN rail (EN 60715)
- Status indication: LED for relay and power
- Operating temperature: -20°C to +50°C
- Degree of protection: IP20 (housing), IP40 (front panel)
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Multi-voltage operation: 24–240V AC/DC
- Wide timing range: 0.05 seconds to 300 hours
- 1 changeover (SPDT) contact output
- DIN rail mountable for easy installation
- LED status indicators for power and relay state
- Compact design for control panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Industrial automation panels
- Lighting control systems
- HVAC systems
- Pumping stations
- General electrical control circuits requiring timed off-delay
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-saving automation by ensuring equipment only runs when needed
- Reduces unnecessary power consumption in control systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHRE22R1CMR Timer Power Off Delay Relay is available for immediate purchase. Ideal for industrial automation, lighting control, and electrical panels requiring precise off-delay timing.
