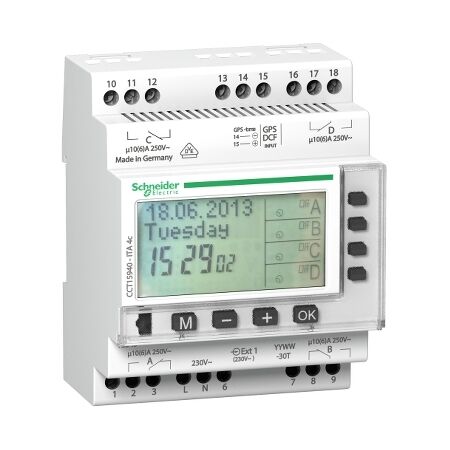

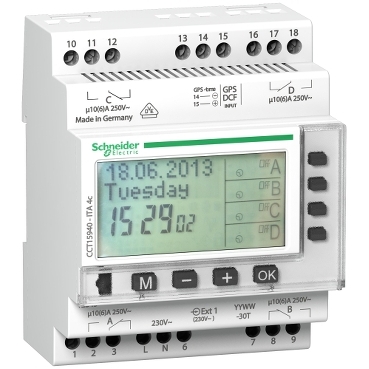

Timer Programmable Switch 4 Channel | 16A Switching Capacity | Digital LCD Display | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Timer Programmable Switch 4 Channel is designed for efficient lighting control and automation in commercial and industrial settings. With four independent programmable channels and a digital LCD display, it allows for yearly, weekly, and daily scheduling. Ideal for HVAC systems and energy management, this switch features a manual override and battery backup to retain settings during power outages, ensuring reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timer Programmable Switch 4 Channel | 16A Switching Capacity | Digital LCD Display | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCCT15940
Alternatively Known As: ['Clipsal 4 Channel Timer Switch', 'Clipsal Acti9 Programmable Timer', 'Clipsal SCHCCT15940', 'Programmable Time Switch 4 Channel', 'DIN Rail Timer Switch']
Technical Specifications
- Channels: 4 independent outputs
- Programming: Yearly, weekly, daily
- Switching capacity: 16A per channel
- Power supply: 230V AC, 50/60Hz
- Display: Digital LCD
- Mounting: DIN rail
- Manual override: Yes
- Backup: Battery for memory retention
- Dimensions (H x L x W): 90mm x 65mm x 72mm
- Weight: 0.35 kg
Key Features
- 4 independent programmable channels
- Yearly, weekly, and daily scheduling capability
- Digital display for easy programming
- Manual override function
- DIN rail mountable for easy installation
- Battery backup to retain settings during power loss
- High switching capacity suitable for various loads
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian wiring regulations.
Applications
- Lighting control in commercial buildings
- Industrial automation
- HVAC systems scheduling
- School and public facility lighting
- Energy management in offices and retail spaces
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy savings by automating lighting and equipment schedules
- Reduces unnecessary power consumption
- Supports efficient building management
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 4 Channel Programmable Timer Switch SCHCCT15940 is available for immediate purchase. Ideal for commercial, industrial, and public facility automation applications.
