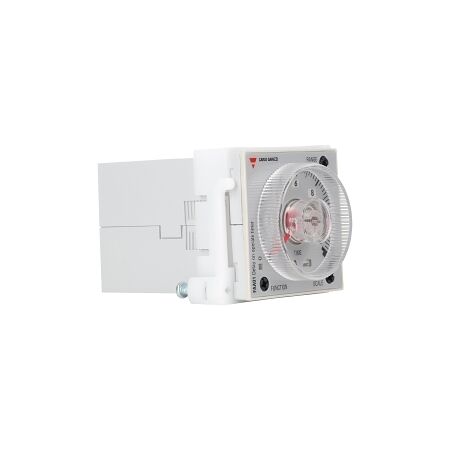

Timer Relay 11-Pin On Delay | 12-240VAC/DC | 0-300 Hours | DIN Rail by NHP
Timer relay with 11-pin on delay and 12-240VAC/DC supply—ideal for industrial automation. Built for precision timing, with adjustable delay up to 300 hours and easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Timer Relays 11Pin On Delay 12-240VACDC Supply 2 CO 0 to 0.05 Seconds 300 Hours
Brand: NHP
SKU: FAA01DW24
Alternatively Known As: Timer Relay, Delay Timer, On Delay Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage: 24-240V AC, 24-48V DC
- Rated Operation Current: 0.2A at DC 12-24V, 2.5A at AC 15-250V
- Time Range: 0.05-1080000 seconds
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Wide voltage supply range: 12-240VAC/DC
- Adjustable time delay from 0 to 300 hours
- 1 CO output with delayed changeover contact
- Screw connection for easy installation
- DIN rail mountable
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control circuits in machinery
- Timing applications in electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relays are available now for immediate purchase, suitable for various industrial applications.
