Timer Relay On Delay 24-240VAC/DC | 0.1s to 100h | DIN Rail Mount by NHP
Timer relay with 24-240VAC/DC supply and 0.1s to 100h range—ideal for industrial automation and commercial HVAC systems. Built for precision timing, with easy screw connection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

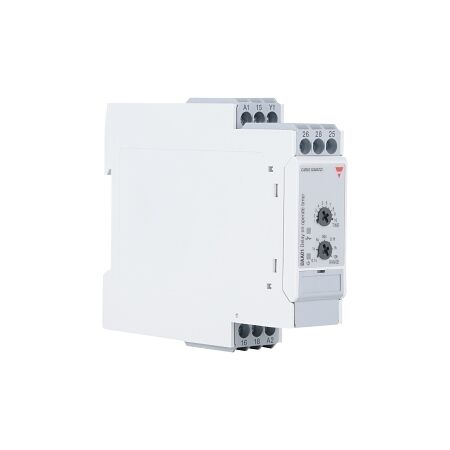

Product Name/Title: Carlo Gavazzi Timer Relay On Delay 24-240VAC DC Supply 2 COContacts 0.1 Seconds to 100 Hours
Brand: NHP
SKU: DAA01DM24
Alternatively Known As: Delay Timer Relay, On Delay Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage (AC 50Hz): 24-240V
- Rated Control Supply Voltage (DC): 24-48V
- Rated Operation Current: 2.5A
- Time Range: 0.1-360000 seconds
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Delay on energization function
- Wide voltage range: 24-240VAC/DC
- Time range from 0.1 seconds to 100 hours
- Screw connection for easy installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay On Delay 24-240VAC DC Supply is available now for immediate purchase. Ideal for industrial and commercial applications.
