Timer Relay On Delay 24VDC & 24-240VAC | 0.1s to 100h | DIN Rail Mount by NHP
Timer relay with 24VDC and 24-240VAC supply, offering a delay range from 0.1 seconds to 100 hours—ideal for industrial automation and control circuits. Built for precision timing, with easy screw connection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

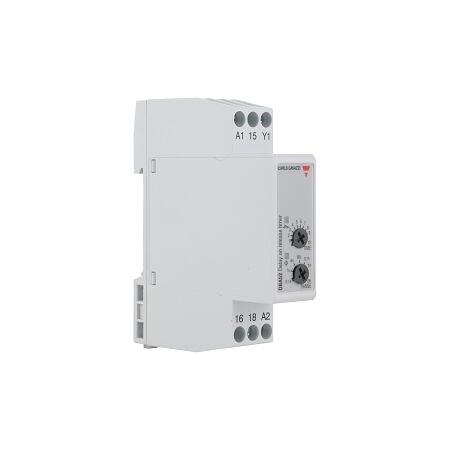

Product Name/Title: Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply 1 CO0.1 Seconds to 100 Hours 17.5mm
Brand: NHP
SKU: DBA52CM24
Alternatively Known As: Delay Timer Relay, On Delay Timer, Timer Relay 24VDC, Timer Relay 24-240VAC
Technical Specifications
- Voltage Type: AC
- Rated Control Supply Voltage: 24 V DC, 24-240 V AC
- Number of Outputs: 1 CO
- Rated Operation Current: 0.2 A at DC 12-24 V, 2.5 A at AC 15-250 V
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Delay on energization function
- Time range from 0.1 seconds to 100 hours
- Screw connection for easy installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial automation systems
- Control circuits requiring time delays
- HVAC systems for timing control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply is available now for immediate purchase. Ideal for industrial and control applications.
