Timer Relay On Delay | 24VDC & 24-240VAC | 1 CO | 1s to 100h by NHP
Timer relay with 24VDC and 24-240VAC supply, offering a delay range from 1 second to 100 hours—ideal for industrial automation and control systems. Built for precision timing, with easy screw connection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

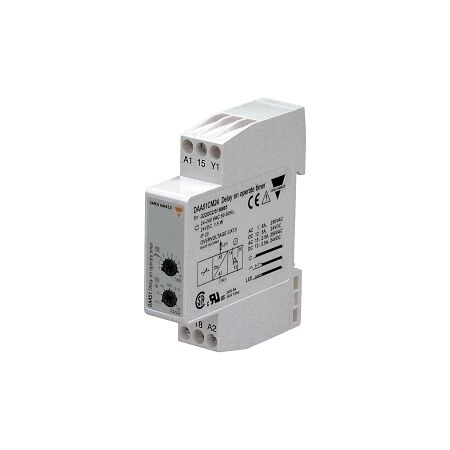

Product Name/Title: Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply 1 CO1 Second to 100 Hours 17.5mm
Brand: NHP
SKU: DAA51CM24
Alternatively Known As: Timer Relay, Delay Timer, On Delay Timer Relay
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage: 24 V DC, 24-240 V AC
- Rated Operation Current: 0.2 A at DC 12-24 V, 2.5 A at AC 15-250 V
- Time Range: 0.1-360000 s
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifespan: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Delay on energization function
- Wide voltage range: 24V DC and 24-240V AC
- Time range from 1 second to 100 hours
- Screw connection for easy installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control systems requiring timed operations
- HVAC systems for delay functions
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply is available now for immediate purchase. Ideal for industrial automation and control systems.
