Timer Relay Star Delta 24-240VAC | 0.1-600s | DIN Rail Mount by NHP
Timer relay with 24-240VAC supply and 0.1 to 600 seconds range—ideal for industrial automation and motor control. Built for precision timing, with DIN rail mounting and star delta function.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

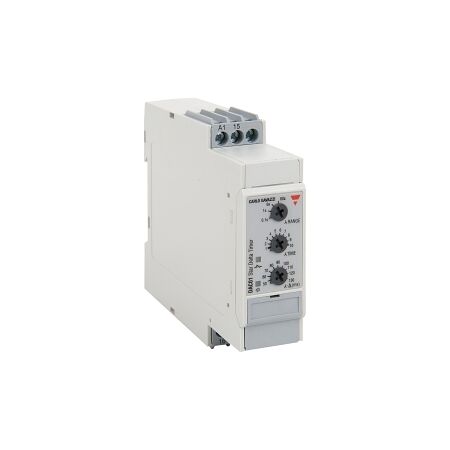

Product Name/Title: Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply 1 CO0.1 to 600 Seconds
Brand: NHP
SKU: DAC01CM24
Alternatively Known As: Timer Relay, Star Delta Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 346-440 V
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Function Star Delta: Yes
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan Control Contacts: 200,000 cycles
- Mechanical Lifetime Control Contacts: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Time range from 0.1 to 600 seconds.
- Suitable for DIN rail mounting.
- Star delta function for motor control.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply is available now for immediate purchase. Ideal for industrial automation and control applications.
