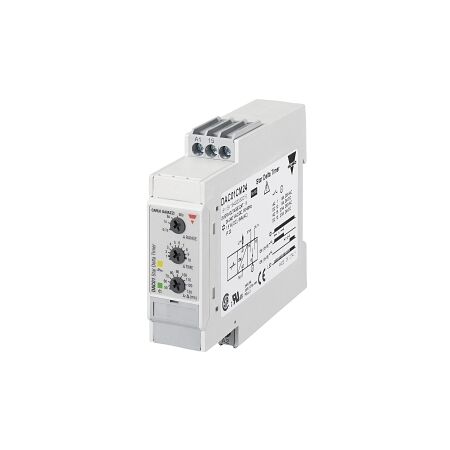

Timer Relay Star Delta 380-415VAC | 0.1-600s | DIN Rail Mount by NHP
Timer relay with 380-415VAC supply and 0.1-600 seconds range—ideal for industrial automation and motor control. Built for precision timing, with DIN rail mounting and energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Type for Actuating: AC/DC
- Rated Control Supply Voltage (DC): 24-48 V
- Rated Control Supply Voltage (AC 60 Hz): 325-456 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Function Delay on Energization: No
- Function Delay on De-energization: No
- Function Star Delta: Yes
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan Control Contacts: 200000 cycles
- Mechanical Lifetime Control Contacts: 30000000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 4 m/s²
- Max Vibration Frequency Operational: 100 Hz
- Operating Temperature: -25-45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Time range from 0.1 to 600 seconds.
- Suitable for DIN rail mounting.
- Star delta function for motor control.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Star Delta 380 to 415VAC Supply is available now for immediate purchase. Ideal for industrial and commercial applications.
