Timer Relay True Off Delay | 24-240VAC/DC | 0.1-600s Range | Carlo Gavazzi by NHP
Timer relay with true off delay functionality and adjustable timing from 0.1 to 600 seconds—ideal for industrial automation and commercial HVAC systems. Built for versatility, with AC/DC compatibility and energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

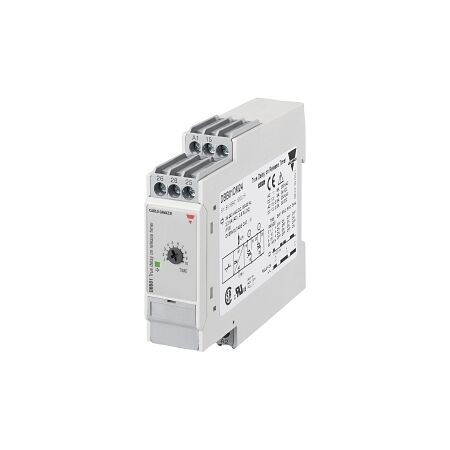

Product Name/Title: Carlo Gavazzi Timer Relay True Off Delay 24-240VAC DC Supply 2 CO0.1 to 600 Seconds
Brand: NHP
SKU: DBB01DM24
Alternatively Known As: Timer Relay, Delay Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage (DC): 24-48 V
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Time Range: 0.1-600 s
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifespan: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- True off delay functionality with adjustable timing from 0.1 to 600 seconds.
- Suitable for both AC and DC supply voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay True Off Delay 24-240VAC DC Supply is available now for immediate purchase. Ideal for industrial and commercial applications.
