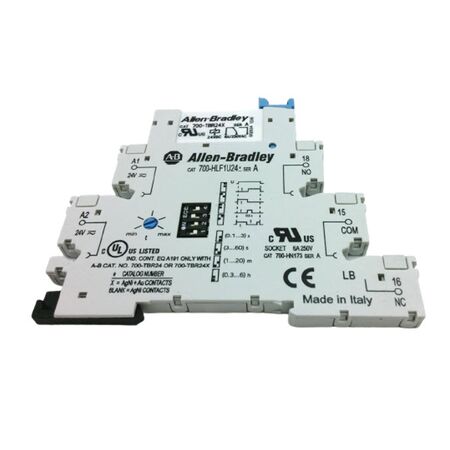

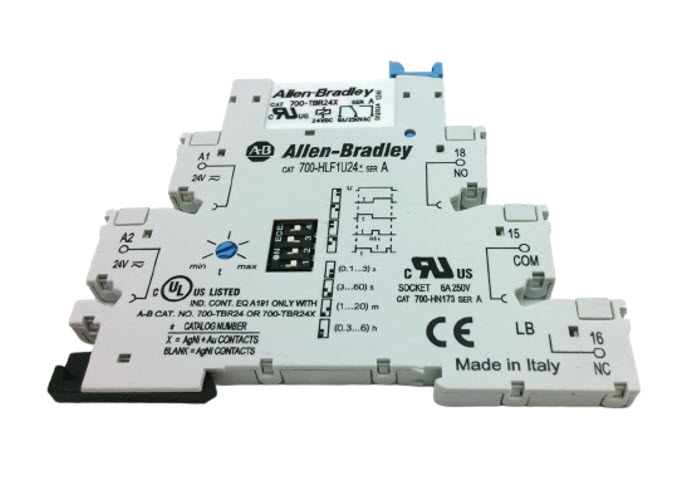

Timing Relay 700HLF1U24 | 6 Amp Capacity | 24 VAC/DC Power Supply | Built-in LED Indicator | by Allen-Bradley
The Timing Relay 700HLF1U24 is designed for industrial automation control systems, featuring a 6 Amp capacity and operating on a 24 VAC/DC power supply. With four timing functions and a built-in LED indicator, it ensures reliable performance in electrical control panels. Ideal for qualified electricians, this relay includes a socket with a screw terminal base for easy installation and coil surge protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: Timing Relay
- Relay Capacity: 6 Amp
- Power Supply: 24 VAC/DC
- Mounting: Socket with screw terminal base
- Indicator: Standard LED
- Functions: Four timing functions
- Features: Built-in retainer clip, coil surge protection, replaceable relay module
- Dimensions (H x L x W): 80mm x 60mm x 35mm
- Weight: 0.2 kg
Key Features
- Includes socket with screw terminal base for easy installation
- Built-in retainer clip for secure mounting
- Standard LED indicator for operational status
- Coil surge protection to enhance durability
- Replaceable relay module for maintenance convenience
- Four timing functions available
- 6 Amp relay capacity
- Operates on 24 VAC/DC power supply
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in machinery and equipment
- Electrical control panels requiring timing relay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Coil surge protection extends product lifespan, reducing electronic waste
- Replaceable relay module minimizes full unit replacement, supporting sustainability
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HLF1U24 Timing Relay is available for immediate purchase, ideal for industrial and commercial electrical control applications.
