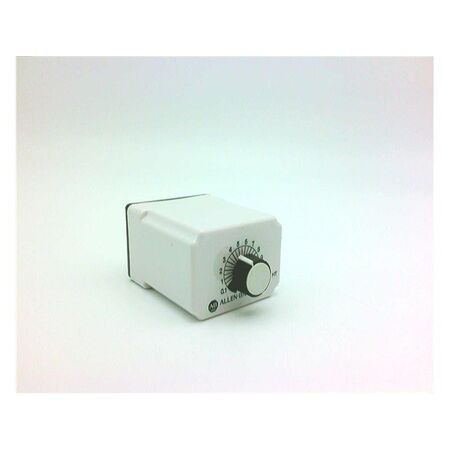

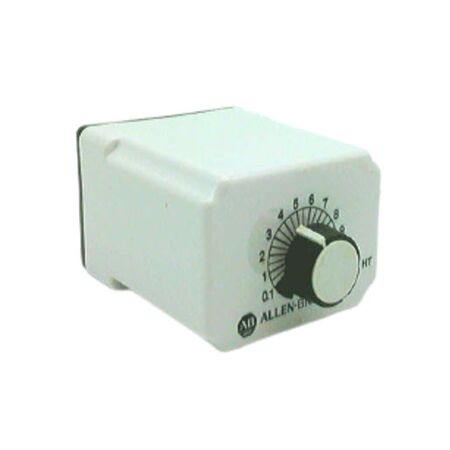

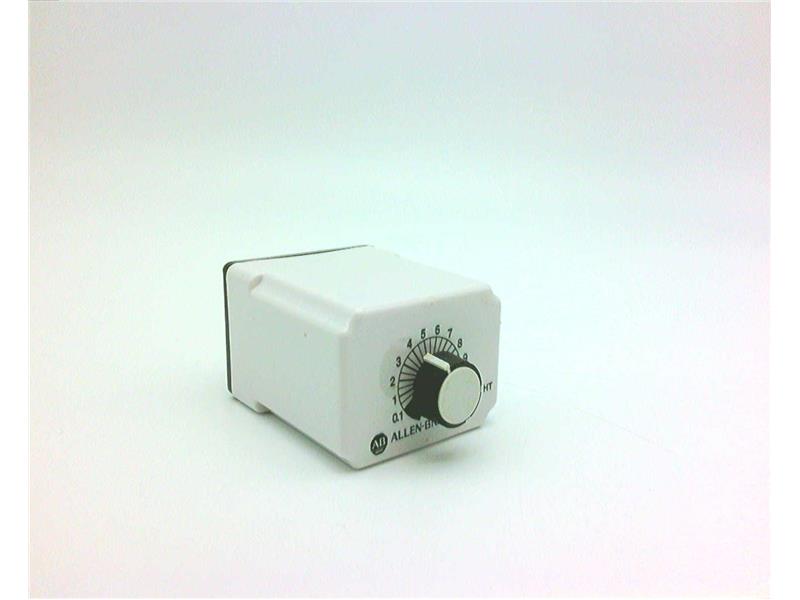

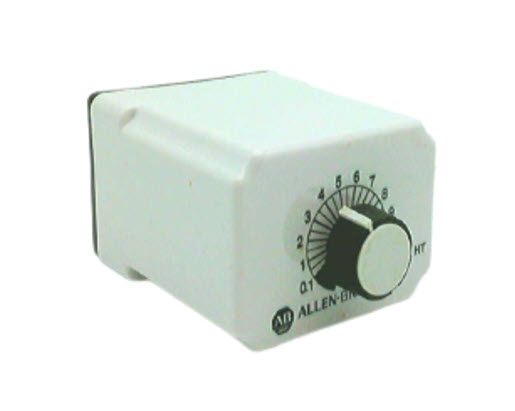

Timing Relay 700HT12AA2 | DPDT Contact Configuration | 10 AMP Rating | On-Delay Function | by Allen-Bradley
The Timing Relay 700HT12AA2 is designed for industrial automation control, featuring a DPDT contact configuration and a 10 AMP rating at 240 VAC. With an adjustable on-delay timing range from 0.1 to 10 seconds, this relay is perfect for timing control in electrical circuits and machinery processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Current Rating: 10 AMP
- Voltage Rating: 240 VAC
- Frequency: 50/60 Hz
- Timing Range: 0.1 to 10 seconds
- Mounting Style: Pin-style socket mounting, tube base
- Function: On-delay timing
- Style: Open style, mountable
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Plug-in timing relay with pin-style socket mounting
- DPDT (Double Pole Double Throw) contact configuration
- Tube base design for easy installation
- On-delay timing function with adjustable range from 0.1 to 10 seconds
- Rated for 10 AMP at 240 VAC, 50/60 Hz
- Open style mountable relay
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in electrical circuits
- Machinery and process control requiring time delay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation reduces power consumption in control circuits
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT12AA2 Timing Relay is available for immediate purchase, ideal for industrial and automation control applications.
