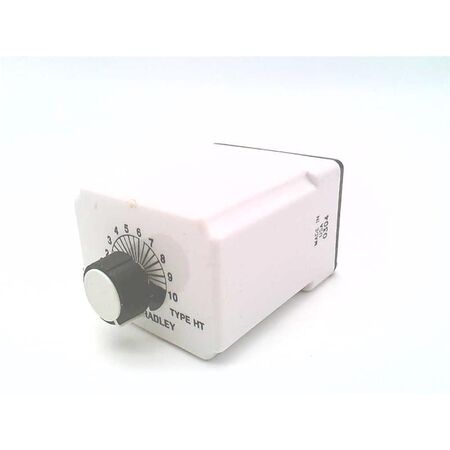

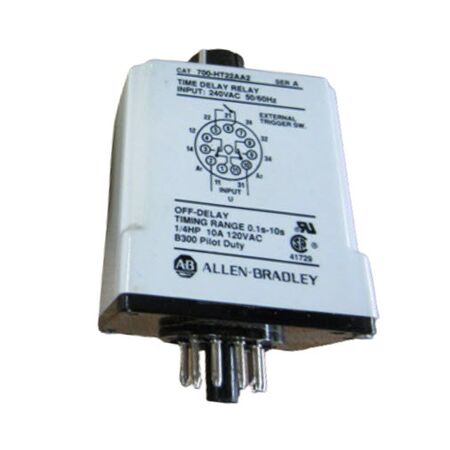

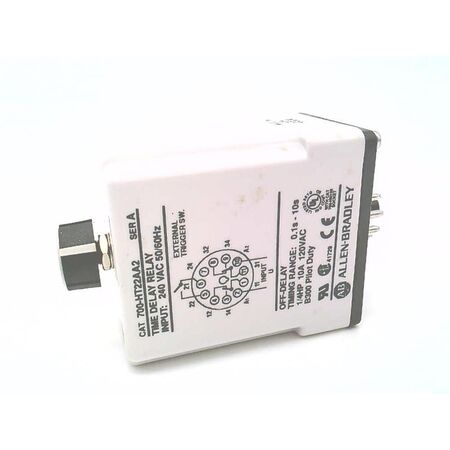

Timing Relay 700HT22AA2 | DPDT Contact Configuration | Off-Delay Function | 10 Amp Current Rating | by Allen-Bradley
The Timing Relay 700HT22AA2 is designed for industrial automation control, featuring a DPDT contact configuration and an off-delay timing function. With a current rating of 10 Amps and an operating voltage of 240 VAC, this relay is perfect for timing control in electrical circuits and machinery processes. Its plug-in design ensures easy installation, making it ideal for qualified electricians looking to enhance system reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Current Rating: 10 Amp
- Voltage: 240 VAC
- Frequency: 50/60 Hz
- Timing Range: 0.1 to 10 seconds
- Mounting: Pin-style socket, tube base
- Function: Off-delay
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Plug-in design with pin-style socket mounting
- DPDT (Double Pole Double Throw) contact configuration
- Off-delay timing function
- Operating voltage: 240 VAC, 50/60 Hz
- Timing range: 0.1 to 10 seconds
- 10 Amp current rating
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in electrical circuits
- Machinery and process control requiring delay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT22AA2 Timing Relay is available now for immediate purchase. Ideal for industrial and automation control applications requiring reliable timing functions.
