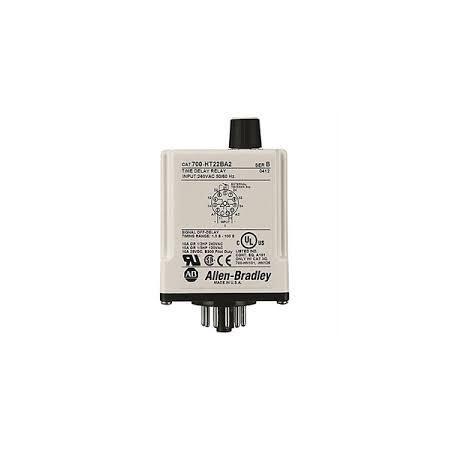

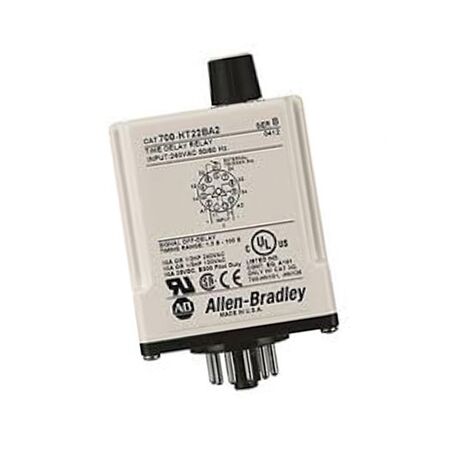

Timing Relay 700HT22BA2 | DPDT Contact Configuration | Off-Delay Function | 240V AC | by Allen-Bradley
The Timing Relay 700HT22BA2 is designed for industrial automation control systems, featuring a DPDT contact configuration and an off-delay timing function. With a voltage rating of 240V AC and a timing range of 0.1 to 100 seconds, this relay is perfect for timing control in manufacturing processes and electrical control panels requiring delay functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Current Rating: 10 A
- Voltage Rating: 240 V AC
- Frequency: 50/60 Hz
- Timing Range: 0.1 to 100 seconds
- Mounting Type: Pin-style socket mounting
- Base Type: Tube base
- Function: Off-delay
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Plug-in design with pin-style socket mounting
- DPDT (Double Pole Double Throw) contact configuration
- Off-delay timing function
- Operating voltage: 240 V AC, 50/60 Hz
- Timing range: 0.1 to 100 seconds
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring delay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT22BA2 Timing Relay is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
