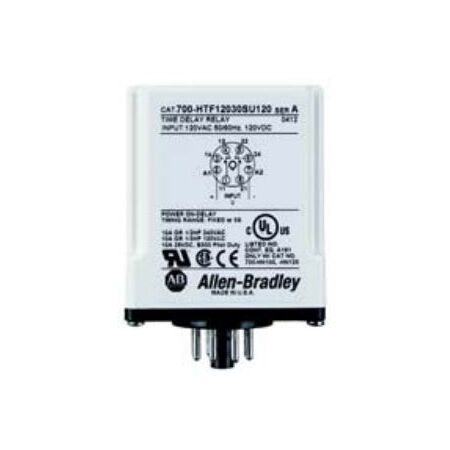

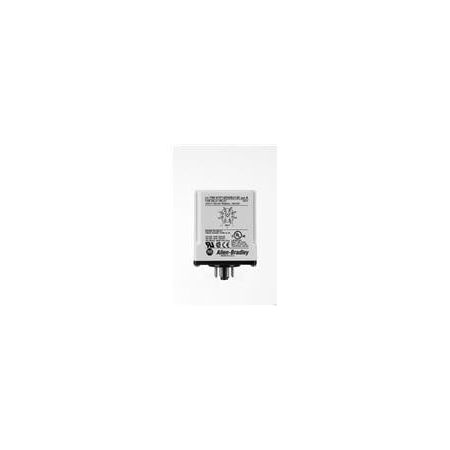

Timing Relay Allen-Bradley 700HTF12100MU120 | Fixed On-Delay | DPDT Contact Configuration | Plug-in Socket | by Allen-Bradley
The Allen-Bradley 700HTF12100MU120 Timing Relay is a fixed on-delay relay designed for industrial automation control systems. With a DPDT contact configuration and a 10 A current rating, it operates at 120 V AC/DC, making it ideal for timing control in manufacturing processes and electrical control panels. Its plug-in pin-style socket ensures easy installation and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Fixed on-delay timing relay
- Contact Configuration: DPDT
- Current Rating: 10 A
- Voltage Rating: 120 V AC/DC
- Frequency: 50/60 Hz
- Socket Type: Plug-in pin-style with tube base
- Timing Range: 10.0M (minutes)
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Fixed on-delay timing relay
- DPDT (Double Pole Double Throw) contact configuration
- Plug-in pin-style sockets with tube base
- Rated for 10 A current
- Operates at 120 V AC/DC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring on-delay timing relays
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing precise timing control in automation systems, reducing unnecessary power usage.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HTF12100MU120 Timing Relay is available now for immediate purchase. Ideal for industrial and commercial automation control applications.
