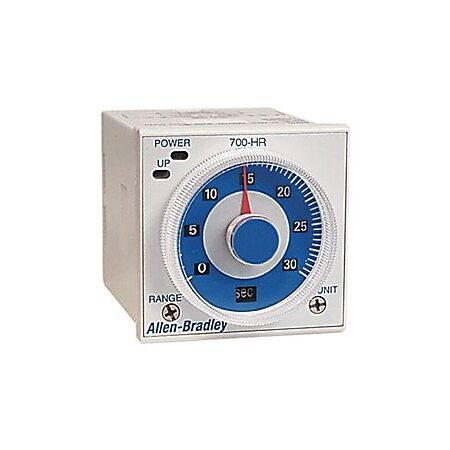

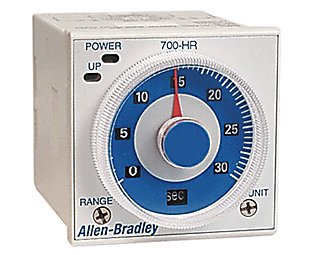

Timing Relay with Dial | DPDT Contacts | 0.05s to 30h Timing Range | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 700HRF72DU27
$396.50 List price: $494.10
+ −
30 Days Return Delivery Options
The Timing Relay with Dial from Allen-Bradley offers precise control with a timing range from 0.05 seconds to 30 hours, making it ideal for industrial automation and delay control in machinery. Featuring DPDT contacts and an 8-pin base for easy installation, this relay is designed for repeat cycle timing applications, ensuring energy efficiency and reliability in electrical control panels.
Technical Specifications
  • Model: 700HRF72DU27
  • Relay Type: Timing relay with dial
  • Contact Configuration: DPDT (Double Pole Double Throw)
  • Base: 8-pin
  • Voltage: 100-125 VDC, 100-240 VAC
  • Timing Range: 0.05 seconds to 30 hours
  • Trigger: Power on
  • Reset: Power off
  • Mounting Style: Open style, mountable
  • Dimensions (H x L x W): 60mm x 50mm x 35mm
  • Weight: 0.2 kg
Key Features
  • Timing relay with adjustable dial
  • Repeat cycle off start functionality
  • 8-pin base for easy installation
  • Double Pole Double Throw (DPDT) contacts
  • Power on trigger and power off reset
  • Open style mountable design
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
  • Industrial automation control systems
  • Timing and delay control in machinery
  • Repeat cycle timing applications
  • Electrical control panels requiring DPDT relay
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances energy efficiency by precise timing control in electrical systems
  • Reduces unnecessary power consumption through accurate cycle timing
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 700HRF72DU27 Timing Relay with Dial is available now for immediate purchase. Ideal for industrial and automation control applications.
