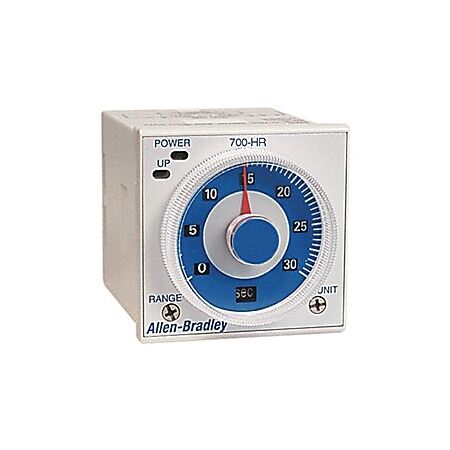

Timing Relay with Dial | DPDT Contact Configuration | 0.05s to 12min Time Range | by Allen-Bradley
The Timing Relay with Dial from Allen-Bradley offers true off-delay timer functionality, featuring a DPDT contact configuration and a time range from 0.05 seconds to 12 minutes. Ideal for industrial automation control systems, this relay ensures precise timing control in manufacturing processes and electrical control panels, enhancing energy efficiency and operational reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 100-120 V AC
- Frequency: 50/60 Hz
- Time Range: 0.05 seconds to 12 minutes
- Contact Configuration: DPDT
- Base Type: 8-pin
- Trigger Type: Power off trigger
- Mounting Style: Open style mountable
- Dimensions (H x L x W): 60mm x 70mm x 45mm
- Weight: 0.2 kg
Key Features
- True off-delay timer functionality
- 8-pin base for easy installation
- DPDT (Double Pole Double Throw) contact configuration
- Power off trigger operation
- Open style mountable design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring off-delay timing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps optimize energy use by precise timing control in electrical systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HRQN2HA12 Timing Relay is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
