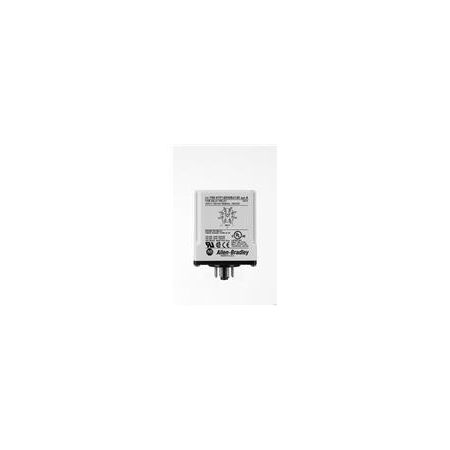

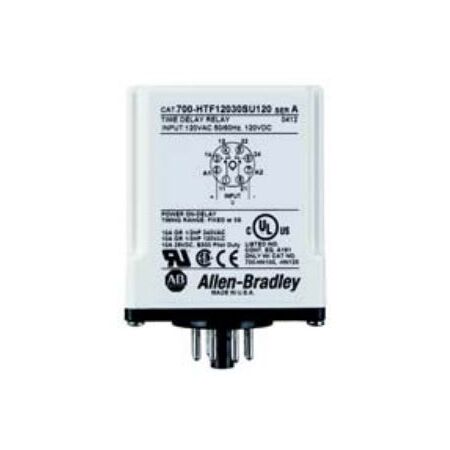

Timing Relay DPDT | 10A Contact Rating | 120V AC/DC | Fixed 60s | by Allen-Bradley
The Timing Relay DPDT from Allen-Bradley is designed for precise timing control in industrial automation systems. With a robust 10A contact rating and operating at 120V AC/DC, this relay features a fixed timing of 60 seconds, making it ideal for manufacturing processes and electrical control panels. Its plug-in pin-style sockets ensure easy installation, while its durable design enhances energy efficiency and reduces waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Contact Rating: 10 A
- Voltage: 120 V AC/DC
- Frequency: 50/60 Hz
- Timing: Fixed 60.0 seconds
- Mounting: Plug-in pin-style sockets with tube base
- Dimensions (H x L x W): 60mm x 70mm x 35mm
- Weight: 0.2 kg
Key Features
- On-delay timing relay
- Double Pole Double Throw (DPDT) contacts
- Plug-in pin-style sockets with tube base
- Operates at 120 V AC/DC, 50/60 Hz
- Fixed timing of 60.0 seconds
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring on-delay timing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control in automation systems
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HTF12600SU120 Timing Relay is available now for immediate purchase. Ideal for industrial and commercial automation control applications.
