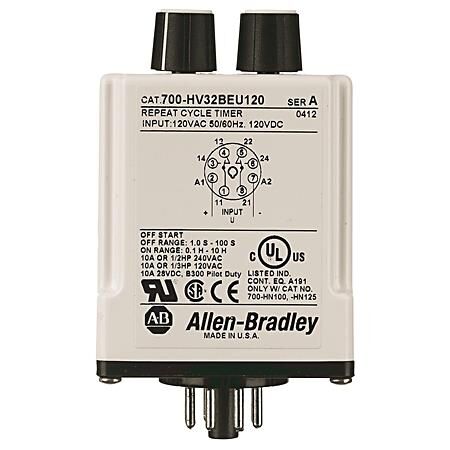

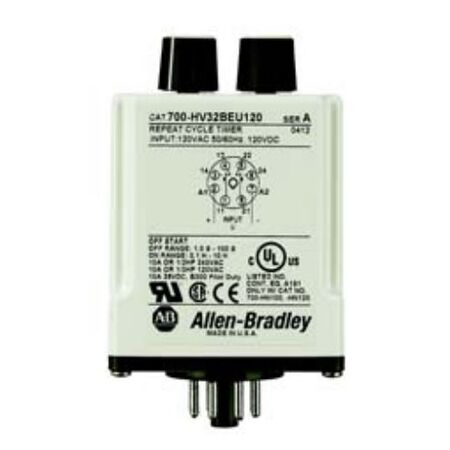

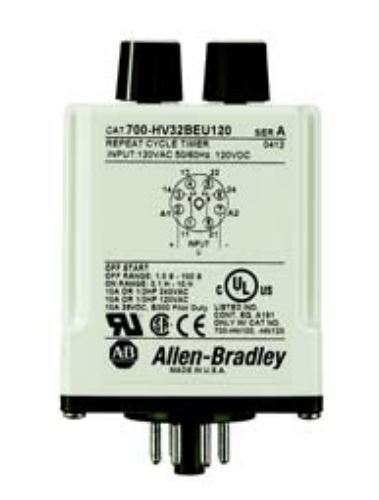

Timing Relay Repeat Cycle DPDT 10A | 240V AC | 1-100 Seconds Timing Range | by Allen-Bradley
The Timing Relay Repeat Cycle DPDT 10A is designed for precise control in industrial automation systems, featuring a 10A contact rating and a versatile timing range of 1-100 seconds. With easy wiring through 8 pin-style terminals and two timing adjustments, it's perfect for manufacturing processes requiring reliable timing control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Contact Rating: 10 A
- Terminal Style: 8 pin-style terminals
- Voltage: 240 V AC
- Frequency: 50/60 Hz
- Timing Range: 1.0-100 seconds off time and on time
- Timing Type: Repeat cycle with off/on delay
- Adjustments: Two timing adjustments
- Dimensions (H x L x W): 60mm x 70mm x 35mm
- Weight: 0.2 kg
Key Features
- Repeat cycle timing relay with off/on delay
- DPDT (Double Pole Double Throw) contacts
- 10 A contact rating
- 8 pin-style terminals for easy wiring
- Two timing adjustments for precise control
- Operates at 240 V AC, 50/60 Hz
- Timing range: 1.0-100 seconds off time and on time
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Repeat cycle timing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control in automation systems
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HV32BBA2 Timing Relay is available for immediate purchase, ideal for industrial and automation control applications.
