TiN Coated Drill Bit Set | 25 Pieces | High-Speed Steel | Self-Centering Design | by Wurth

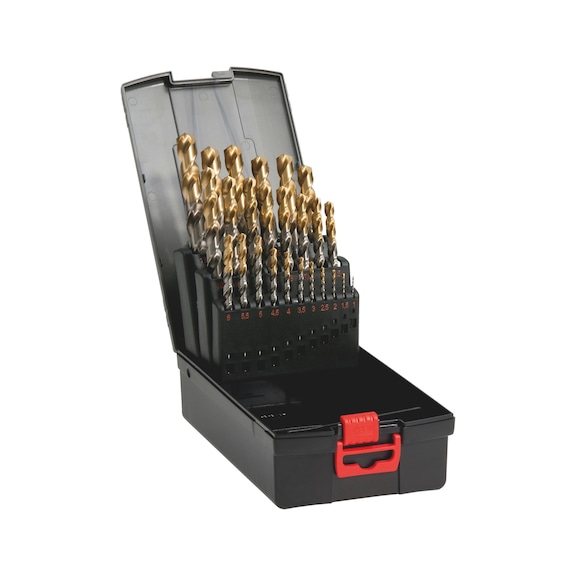

The TiN Coated Drill Bit Set features 25 precision steel drill bits designed for general drilling in steel and cast iron. With a self-centering design and optimized cutting geometry, these high-speed steel bits ensure consistent hole quality and reduced feed force. Ideal for skilled users, this set is perfect for use with cordless drills and upright drilling machines, making it a versatile addition to any toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TiN Coated Drill Bit Set | 25 Pieces | High-Speed Steel | Self-Centering Design | by Wurth
Brand: Wurth
SKU: 624020004
Alternatively Known As: TiN Coated Drill Bit Set, Precision Steel Drill Bits, High-Speed Steel Drill Bits, Wurth Drill Bit Assortment
Technical Specifications
- Number of pieces: 25 PCS
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Shank style: Cylindrical
- Surface: TiN coated
- Cutting material: High-Speed Steel (HSS)
- Type: RN
- Suitable for drill points system: 3 of 4 points
- Suitable for cordless drills points system: 3 of 4 points
- Suitable for upright drilling machine points system: 3 of 4 points
- Suitable for milling-drilling centre points system: 2 of 4 points
- Service life points system: 4 of 4 points
- Drilling speed points system: 3 of 4 points
- Bore hole quality points system: 4 of 4 points
- Versatility points system: 2 of 4 points
- Drilling behaviour points system: 3 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 30mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Sturdy twist drill with short design for precise drilling
- Very precise tip and cutting geometry ensuring constant drilled-hole quality
- Optimized crosswise drill point narrowing reduces feed force by 20%
- Self-centering design for accurate drilling
- Long tool life with high-quality TiN coating
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling equipment by skilled users.
Applications
- General drilling in steel up to 850 N/mm² strength
- Drilling in cast iron
- Suitable for use with cordless drills, upright drilling machines, and milling-drilling centers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable TiN coating extends tool life reducing waste
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 25 Pieces TiN Head Coated Steel Precision Drill Bit Set is available now for immediate purchase. Ideal for machining and general drilling applications in steel and cast iron.
