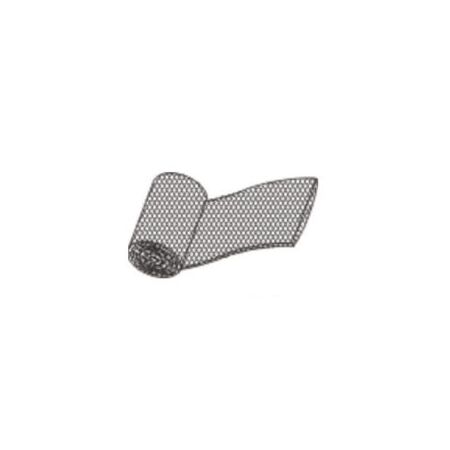

Tinned Copper Knitted Mesh 2m Powerjoint
Powerjoint tinned copper mesh features knitted wire construction in a 2m length. Ideal for connecting cable metallic shielding in LV and MV joints and terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tinned Copper Mesh Roll, Cable Shielding Mesh, Copper Screen Bonding Mesh, Cable Joint Earthing Mesh
Technical Specifications
- Product Type: Cable joint shielding and bonding mesh
- Material: Tinned copper
- Construction: Fine-stranded knitted wire mesh
- Length: 2 m
- Width: 70 mm
- Packaging Unit: 1 each
- Cable Compatibility: LV and MV cable joints and terminations
- Primary Function: Connects and maintains continuity of cable metallic shielding
- Brand Reference: POWERJOINT / CABAC item CM2000
- Dimensions (H x L x W): 5mm x 2000mm x 70mm
- Weight: 0.1 kg
Key Features
- Knitted wire construction provides a flexible, conforming mesh
- Tinned copper provides conductive metallic shielding continuity
- Suitable for connecting cable metallic shielding in LV and MV joints
- Designed for use with cable joints and terminations
- Supplied as a 2 m roll
- 70 mm mesh width suits common cable accessory applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical cable jointer or licensed electrical contractor, using the applicable cable joint or termination manufacturer's instructions. The mesh must be correctly bonded to the cable metallic shielding and incorporated into the joint's earthing and screening arrangement.
Applications
- LV cable joints
- MV cable joints
- LV cable terminations
- MV cable terminations
- Bonding cable metallic screens and shields
- Cable earthing and screen-continuity applications
Standards & Compliance
- Applicable reference: AS/NZS 4805.1:2007 for testing requirements for accessories used with extruded-insulation power cables from 1.9/3.3 kV up to 19/33 kV; no standalone conformity declaration for this mesh component was located. POWERJOINT cable joint and termination systems are documented as being tested against AS/NZS 4805 requirements. ([webstore.ansi.org](https://webstore.ansi.org/preview-pages/SAI/preview_00-2387245220-primary.pdf?utm_source=openai))
Environmental Benefits
- Copper is highly recyclable at end of service life
- Tinned copper helps resist oxidation and corrosion, supporting longer service life
- Flexible mesh construction can reduce the need for replacement of complete cable joint components when correctly installed
- Supports reliable cable shielding and earthing continuity, helping maintain the intended performance of power cable systems
Warranty Information
Cabac's general warranty terms provide repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use in accordance with specifications and statutory Australian Consumer Law rights. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))
Available Now
Available through POWERJOINT/CABAC and authorised Australian electrical distributors; live stock availability should be confirmed before ordering. ([cabac.com.au](https://www.cabac.com.au/cm2000?utm_source=openai))
