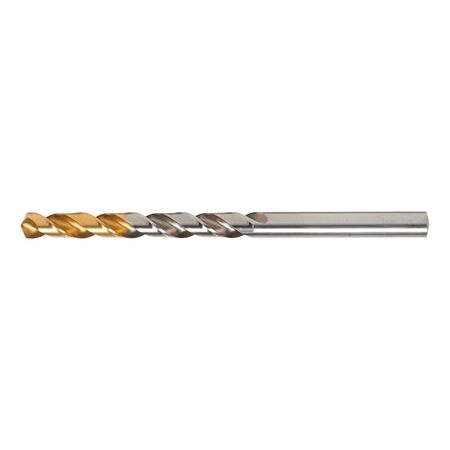

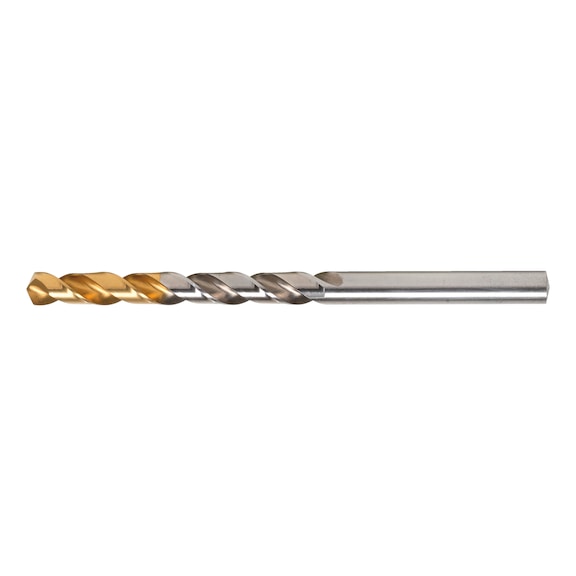

Titanium Nitride Coated Drill Bit | 1.0 mm Diameter | High-Speed Steel | Self-Centering Design | by Wurth
The Titanium Nitride Coated Drill Bit is designed for precision drilling in steel and cast iron, featuring a 1.0 mm diameter and optimized cutting geometry for consistent hole quality. With a self-centering design and a sturdy twist drill construction, it ensures long tool life and reduced feed force, making it ideal for general drilling applications up to 850 N/mm² strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material to be processed: Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.0 mm
- Length (l1): 34 mm
- Chip flute length (l2): 12 mm
- Shank diameter: 1.0 mm
- Shank style: Cylindrical
- Surface: TiN coated
- Cutting material: High-Speed Steel (HSS)
- Type: RN
- Angle of the tip: 130 degrees
- Service life rating: 4 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 34mm x 34mm x 1mm
- Weight: 0.1 kg
Key Features
- Sturdy twist drill with short design for precise drilling
- Very precise tip and cutting geometry ensuring constant drilled-hole quality
- Optimized crosswise drill point narrowing reduces feed force by 20%
- Self-centering design
- Long tool life
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling equipment.
Applications
- General drilling in steel up to 850 N/mm² strength
- Drilling in cast iron
- Core hole drilling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies.
Available Now
Available for immediate purchase, ideal for precision drilling in steel and cast iron applications.
