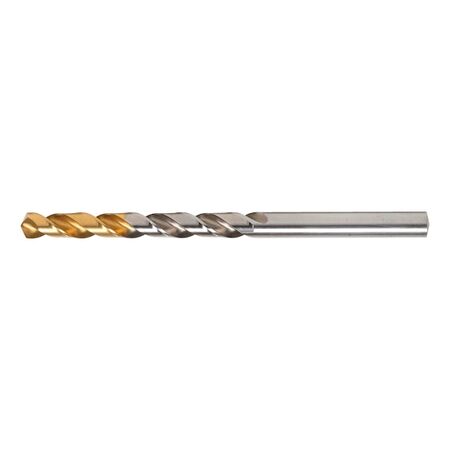

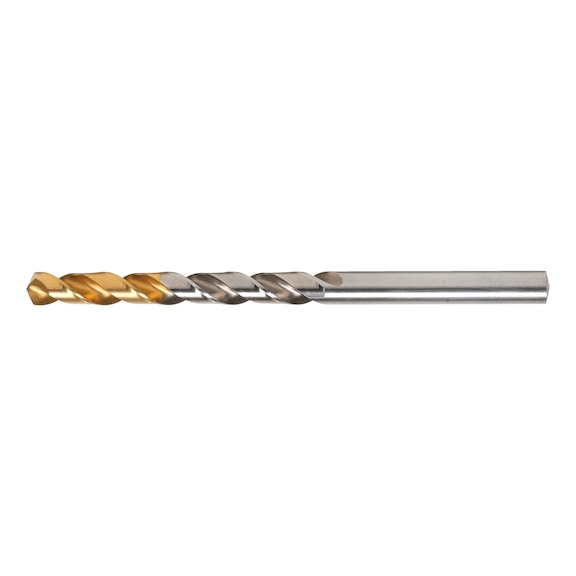

Titanium Nitride Coated Drill Bit | 3.20 mm Diameter | High-Speed Steel | Self-Centering Design | by Wurth
The Titanium Nitride Coated Drill Bit is designed for precision drilling in steel, featuring a 3.20 mm diameter and optimized cutting geometry for consistent hole quality. Ideal for general drilling in materials up to 850 N/mm² strength, this drill bit ensures a long tool life and is suitable for use with standard drilling equipment, making it perfect for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Titanium Nitride Coated Drill Bit | 3.20 mm Diameter | High-Speed Steel | Self-Centering Design | by Wurth
Brand: Wurth
SKU: 624020320
Alternatively Known As: Titanium Nitride Coated Drill Bit, HSS TiN Drill, Precision Steel Drill Bit
Technical Specifications
- Material to be processed: Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 3.20 mm
- Length (l1): 65 mm
- Chip flute length (l2): 36 mm
- Shank diameter: 3.20 mm
- Shank style: Cylindrical
- Surface: TiN coated
- Cutting material: High-Speed Steel (HSS)
- Type: RN
- Angle of the tip: 130 degrees
- Service life rating: 4 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Suitable for drill rating: 3 of 4 points
- Suitable for cordless drills rating: 3 of 4 points
- Suitable for upright drilling machine rating: 3 of 4 points
- Suitable for milling-drilling centre rating: 2 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 65mm x 65mm x 3mm
- Weight: 0.1 kg
Key Features
- Sturdy twist drill with short design for precise drilling
- Very precise tip and cutting geometry ensuring constant drilled-hole quality
- Optimized crosswise drill point narrowing reduces feed force by 20%
- Self-centering design
- Long tool life
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling equipment.
Applications
- General drilling in steel up to 850 N/mm² strength
- Drilling in cast iron
- Core hole drilling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth TiN Head Coated Steel Precision Drill 3.20mm is available now for immediate purchase. Ideal for machining and metalworking applications.
