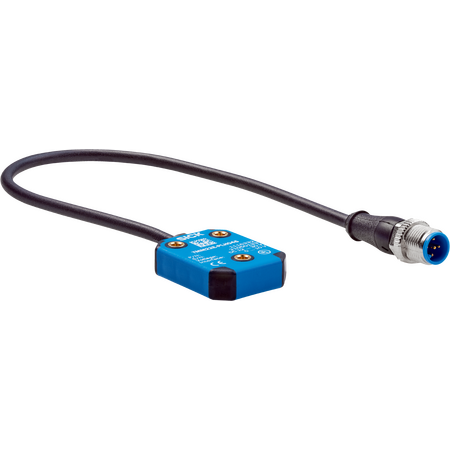

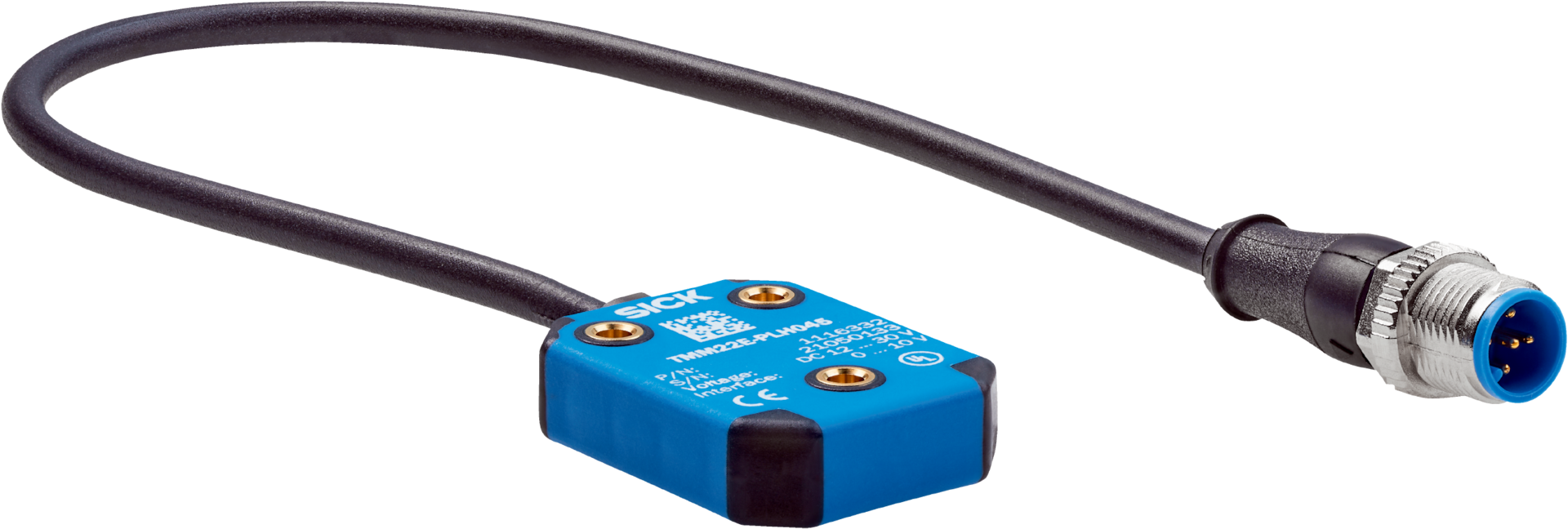

TMM22E-PKH060 | Inertial sensors
The SICK TMM22E-PKH060 is a high-precision 2-axis inertial sensor offering ±60° measuring range, robust IP69K-rated housing, and reliable analog current output for industrial safety and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TMM22E-PKH060 | Inertial sensors
Brand: SICK
SKU: 1116336
Alternatively Known As: 2-Axis Inertial Sensor, Analog Inclinometer, Industrial Tilt Sensor, SICK Angle Sensor
Technical Specifications
- Number of axis: 2
- Measuring range: ±60°
- Resolution: ≤ 0.015°
- Static measurement accuracy: Typical 0.25°, max 0.6°
- Repeatability: 30 μA
- Compensated cross-sensitivity (2D): Typical ±0.5°, max ±0.9°
- Temperature coefficient (zero point): ±0.03°/K
- Limit frequency: 2 Hz
- Sampling rate: 400 Hz
- Communication interface: Analog / Current
- Current output: 4 mA to 20 mA
- Load resistance: 200 Ω to 900 Ω
- Status LEDs: 2x (green/red)
- Output signal (error state): 2 to 3 mA
- Initialization time: 250 ms
- Connection type: Cable, 5-wire, M12 male connector, 5-pin, 0.3 m
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 30 mA at 24 V
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Housing material: Plastic (PA12), glass-fiber reinforced
- Cable material: PUR
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature range: -40 °C to +80 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- 2-axis inertial sensor with ±60° measuring range
- High resolution of ≤ 0.015° and typical static accuracy of 0.25°
- Analog current output (4 mA to 20 mA) with error signal output
- Robust housing with IP66, IP67, IP68, and IP69K protection ratings
- Wide operating temperature range from -40 °C to +80 °C
- Short-circuit and reverse polarity protection
- Fast initialization time of 250 ms
- Status indication via dual green/red LEDs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, calibration, and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine monitoring and diagnostics
- Position and angle measurement in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMM22E-PKH060 inertial sensor is available for immediate purchase, ideal for industrial automation, safety, and motion control applications.
