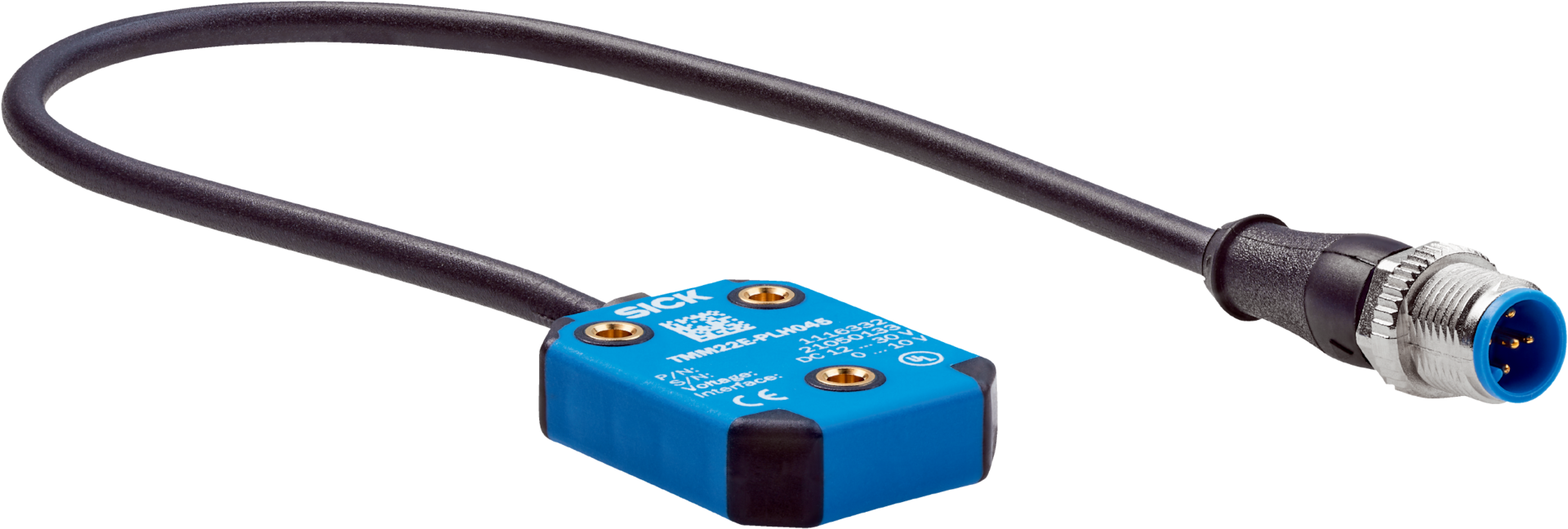

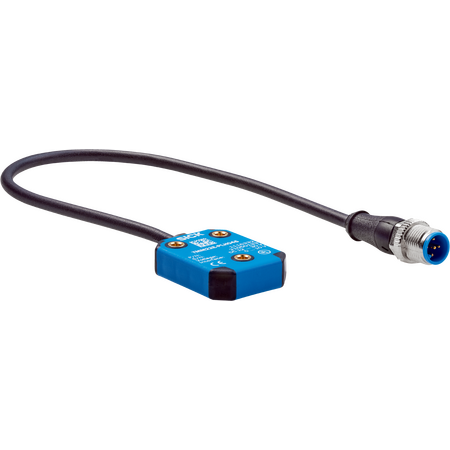

TMM22E-PLG090 | Inertial sensors
The SICK TMM22E-PLG090 is a high-precision 2-axis inertial sensor offering ±90° measuring range, robust IP66-69K rated housing, and advanced safety features for industrial and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TMM22E-PLG090 | Inertial sensors
Brand: SICK
SKU: 1116575
Alternatively Known As: 2-Axis Inertial Sensor, Tilt Sensor, Angle Sensor, SICK TMM22E, Industrial Inclinometer
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 961 years (EN ISO 13849-1)
- Number of axis: 2
- Measuring range: ±90°
- Resolution: ≤ 0.015°
- Static measurement accuracy: Typical 0.25°, max 0.6°
- Repeatability: 30 mV
- Compensated cross-sensitivity (2D): Typical ±0.5°, max ±0.9°
- Temperature coefficient (zero point): ±0.03°/K
- Limit frequency: 2 Hz
- Sampling rate: 400 Hz
- Communication interface: Analog / Voltage output 0 V ... 10 V
- Load resistance: ≥ 2 kΩ
- Connection type: Cable, 5-wire, with male M12 5-pin connector, 1 m length
- Supply voltage: 12 V DC ... 30 V DC
- Current consumption: < 30 mA @ 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (PA12), glass-fiber reinforced
- Cable material: PUR
- EMC compliance: EN 61326-1
- Shock resistance: 100 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 10 Hz ... 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- 2-axis inertial sensor with ±90° measuring range
- High resolution of ≤ 0.015° and typical static measurement accuracy of 0.25°
- Robust housing with IP66, IP67, IP68, and IP69K protection ratings
- Operating temperature range from –40 °C to +80 °C
- Short-circuit and reverse polarity protection
- Fast initialization time of 250 ms
- Status indication via 2 LEDs (green/red)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and robotics for precise angle measurement
- Safety-related applications requiring reliable inertial sensing
- Machine monitoring and control systems
- Environmental and vibration monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption (<30 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMM22E-PLG090 inertial sensor is available for immediate purchase, ideal for industrial automation, safety, and monitoring applications.
