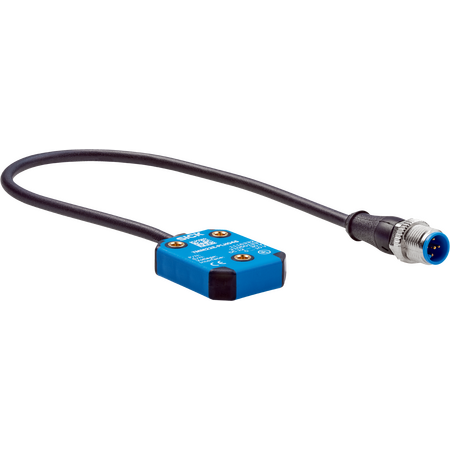

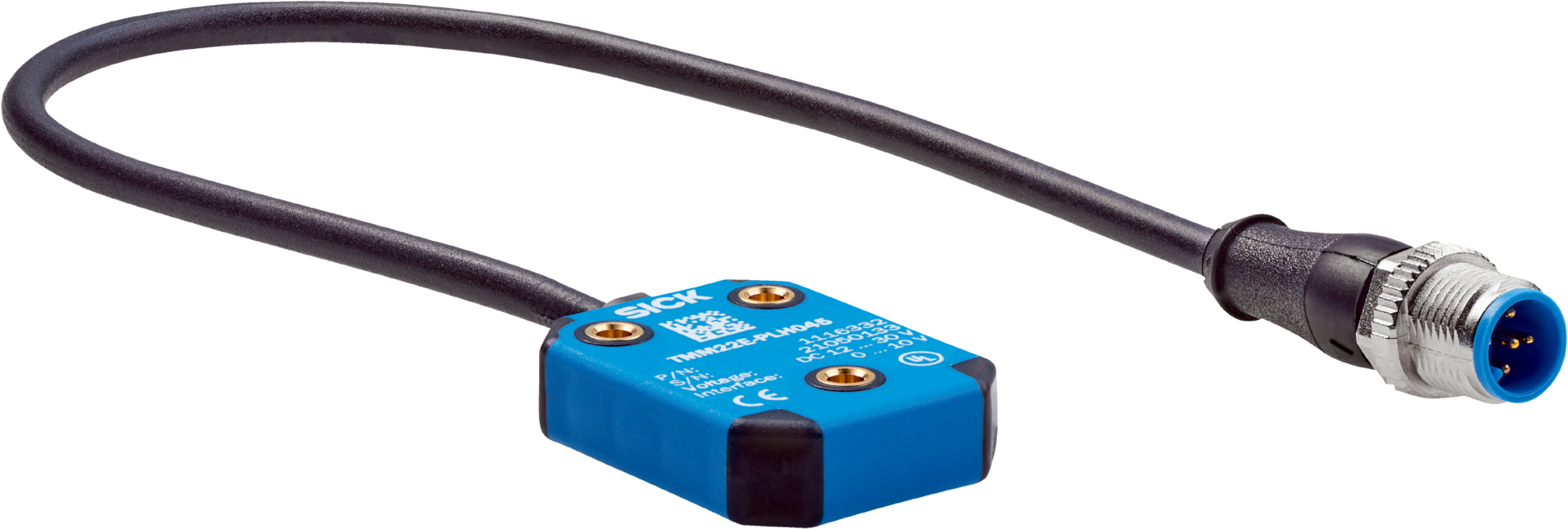

Product Name/Title: TMM22E-PLH010 | Inertial sensors
Brand: SICK
SKU: 1116303
Alternatively Known As: 2-Axis Inertial Sensor, Tilt Sensor, Angle Sensor, Industrial Inclinometer
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 961 years (EN ISO 13849-1)
- Number of axis: 2
- Measuring range: ±10°
- Resolution: ≤0.015°
- Static measurement accuracy: Typical 0.25°, max 0.6°
- Repeatability: 30 mV
- Compensated cross-sensitivity (2D): Typical ±0.5°, max ±0.9°
- Temperature coefficient (zero point): ±0.03°/K
- Limit frequency: 2 Hz
- Sampling rate: 400 Hz
- Communication interface: Analog voltage output 0 V to 10 V
- Load resistance: ≥ 2 kΩ
- Connection type: 5-wire cable with M12 5-pin male connector, 0.3 m length
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: <30 mA @ 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Glass-fiber reinforced plastic (PA12)
- Cable material: PUR
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- 2-axis inertial sensor with ±10° measuring range
- High resolution of ≤ 0.015° and typical static accuracy of 0.25°
- Robust housing with IP66, IP67, IP68, and IP69K protection ratings
- Operating temperature range from –40 °C to +80 °C
- Analog voltage output (0 V to 10 V) with 0-set function via hardware pin
- Short-circuit and reverse polarity protection
- Status indication via dual green/red LEDs
- Fast initialization time of 250 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Machine condition monitoring
- Robotics and motion control
- Tilt and angle measurement in harsh environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (<30 mA at 24 V) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
