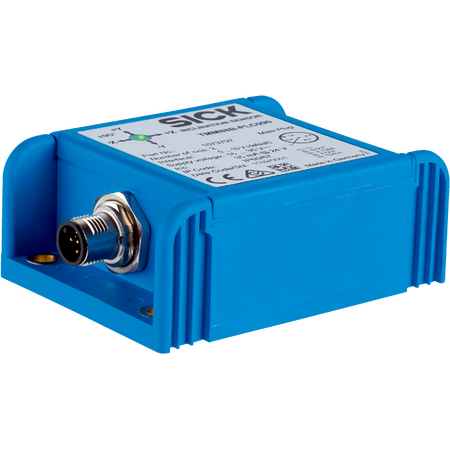

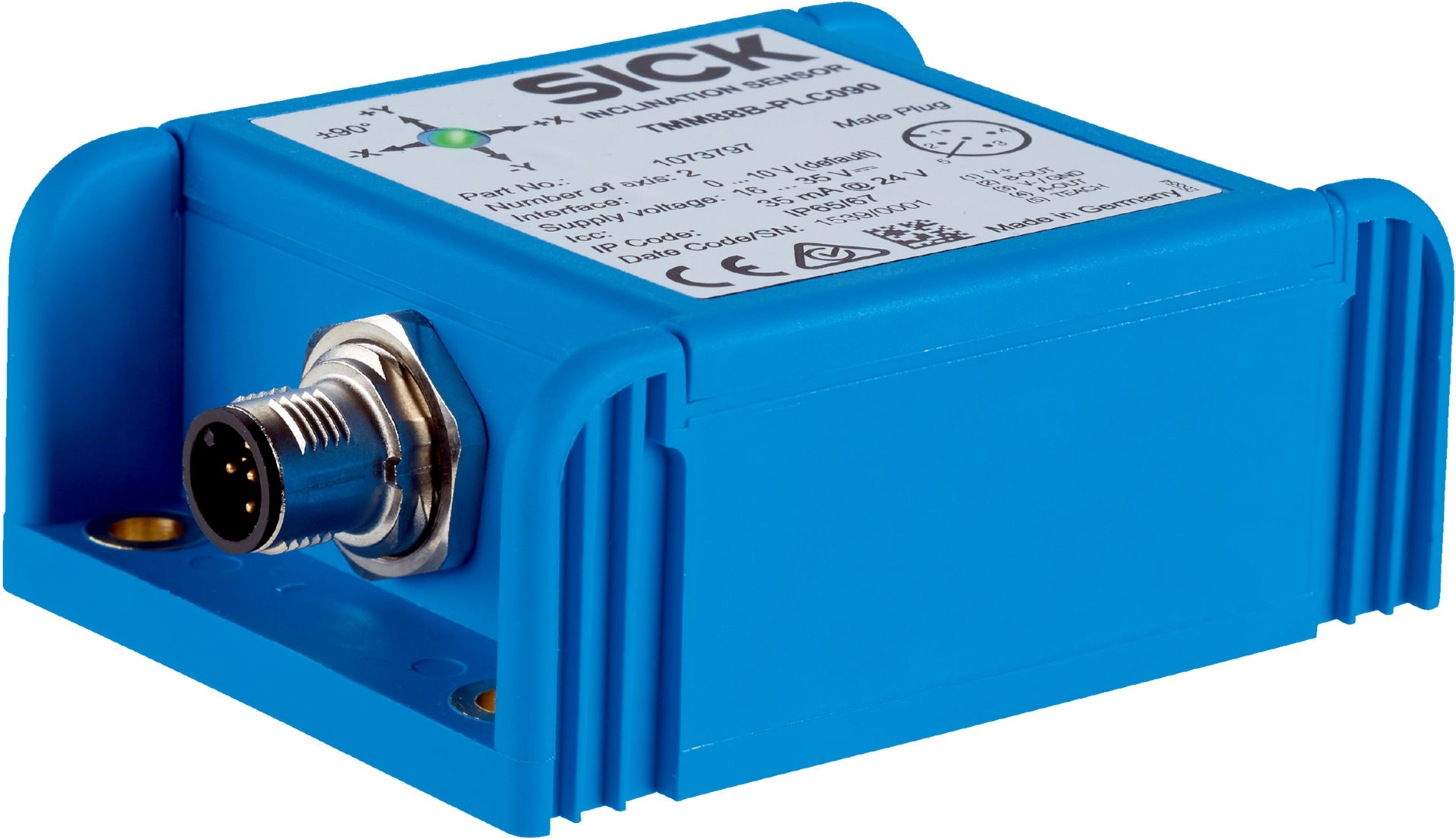

TMM88A-PLC090 | Inertial sensors
The SICK TMM88A-PLC090 is a high-precision 2-axis inertial sensor offering ±90° measuring range, robust IP65/IP67 rated housing, and programmable analog voltage output, ideal for industrial safety and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TMM88A-PLC090 | Inertial sensors
Brand: SICK
SKU: 1073801
Alternatively Known As: 2-Axis Inertial Sensor, Angular Position Sensor, Tilt Sensor, Industrial Inclinometer
Technical Specifications
- Number of axis: 2
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: varies by angle, typically ±0.02° to ±0.16°
- Compensated cross-sensitivity (2D): typically ±0.09°, max ±0.45°
- Temperature coefficient (zero point): typically ±0.0083°/K
- Limit frequency: 0.1 Hz to 25 Hz with digital filter
- Sampling rate: 100 Hz
- Communication interface: Analog voltage output 0 V to 10 V
- Parameterising data: measuring range, zero set, limit frequency, preset value, inverting counting direction, axis assignment
- Programmable via PGT-12-Pro
- Initialization time: 330 ms
- Connection type: Male M12 5-pin connector
- Supply voltage: 10 V DC to 35 V DC
- Current consumption: 55 mA at 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (PBT)
- Enclosure rating: IP65 and IP67
- Operating temperature: –40 °C to +80 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- 2-axis inertial sensor with ±90° measuring range
- High resolution of 0.01° for precise measurements
- Static measurement accuracy varies with angle, typically ±0.02° up to ±0.16°
- Analog voltage output from 0 V to 10 V
- Programmable parameters including measuring range, zero set, limit frequency, and axis assignment
- Robust plastic (PBT) housing with IP65 and IP67 enclosure ratings
- Wide operating temperature range from –40 °C to +80 °C
- Resistance to shocks up to 100 g and vibration up to 10 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation and safety systems
- Machine monitoring and control
- Robotics and motion detection
- Position and angle measurement in harsh environments
Standards & Compliance
- AS/NZS 61000 series for EMC compliance (EN 61326-1 equivalent)
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with 55 mA current at 24 V DC
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TMM88A-PLC090 inertial sensor is available for immediate purchase, ideal for industrial automation and safety applications.
