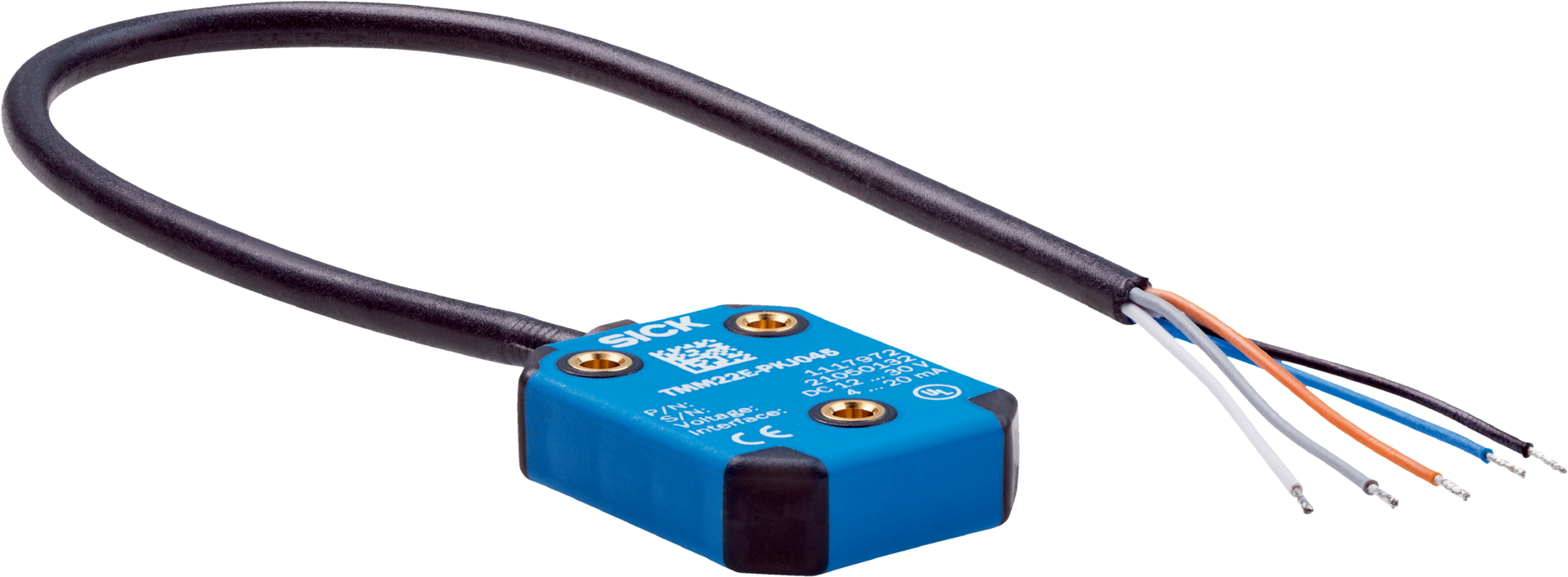

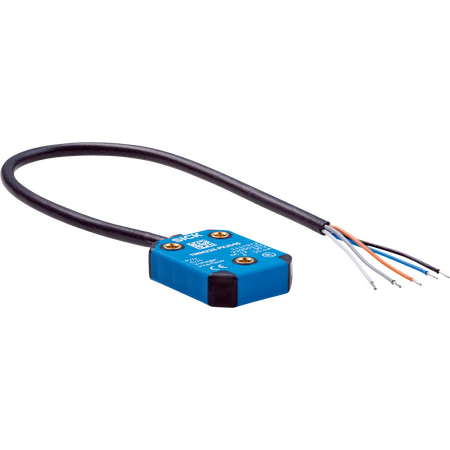

TMS22B-PKK120 | Inertial sensors
The SICK TMS22B-PKK120 is a high-precision single-axis inertial sensor offering a 120° measuring range, robust design, and advanced safety features for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TMS22B-PKK120 | Inertial sensors
Brand: SICK
SKU: 1141312
Alternatively Known As: Inertial angle sensor, single axis inclinometer, industrial tilt sensor, analog output inertial sensor
Technical Specifications
- Mean time to dangerous failure (MTTFD): 349 years (EN ISO 13849-1)
- Number of axis: 1
- Measuring range: 120°
- Resolution: ≤ 0.01°
- Static measurement accuracy: Typical 0.1°, max 0.2°
- Repeatability: Typical 0.04°, max 0.12°
- Temperature coefficient (zero point): ±0.0167°/K
- Limit frequency: 0.1 Hz to 10 Hz (default 2 Hz)
- Sampling rate: 400 Hz
- Communication interface: Analog current output (4 mA to 20 mA)
- Load resistance: 200 Ω to 900 Ω
- Status LEDs: 2x (green/red)
- Output signal error state: 1 to 2.5 mA
- Parameterising data: Measuring range, zero set, limit frequency, preset value, inverting counting direction, axis assignment
- Programmable via PGT-15
- Connection type: 5-wire cable, 1.5 m length
- Supply voltage: 8 V DC to 32 V DC
- Current consumption: < 45 mA at 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (PA12), glass-fiber reinforced
- Cable material: PUR
- EMC compliance: EN 61326-1
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature range: -40 °C to +80 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- Single axis inertial sensor with 120° measuring range
- High resolution of ≤ 0.01° and typical static accuracy of 0.1°
- Robust plastic housing with glass-fiber reinforcement
- Wide operating temperature range from -40 °C to +80 °C
- IP66, IP67, IP68, and IP69K rated for protection against dust and water
- Analog current output (4 mA to 20 mA) with error state signaling
- Short-circuit and reverse polarity protection
- Fast initialization time of 100 ms
- Programmable parameters including measuring range, zero set, and frequency
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine monitoring and diagnostics
- Position and angle measurement in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMS22B-PKK120 inertial sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise angle measurement.
