TMS22E-PLJ180 | Inertial sensors

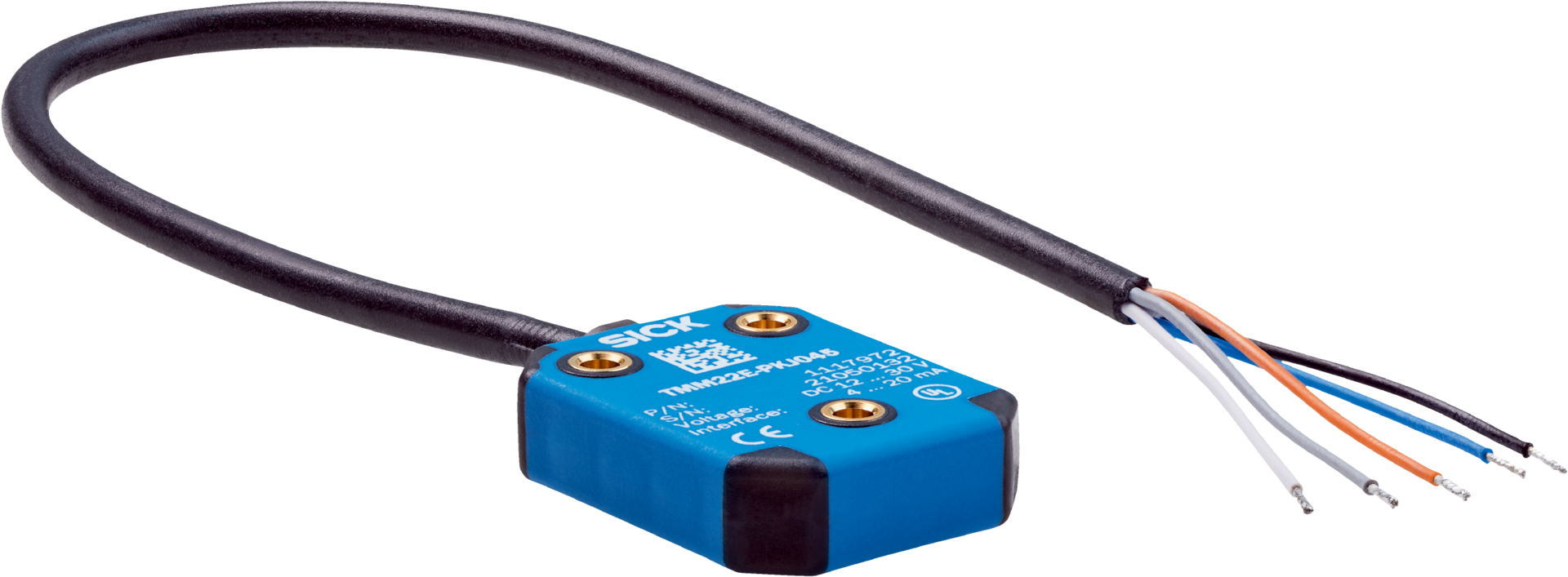

The SICK TMS22E-PLJ180 is a high-precision single-axis inertial sensor offering a 180° measuring range, robust construction, and advanced safety features for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

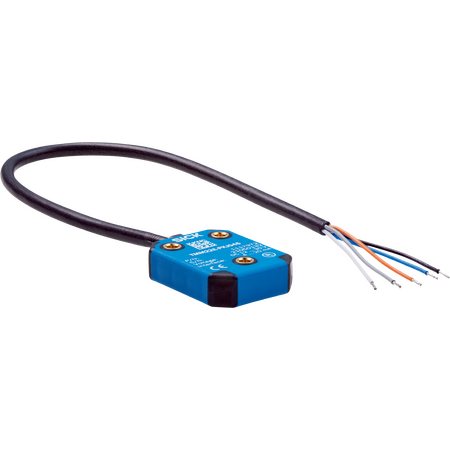

Product Name/Title: TMS22E-PLJ180 | Inertial sensors
Brand: SICK
SKU: 1116341
Alternatively Known As: Inertial angle sensor, single axis inclinometer, industrial tilt sensor, angular position sensor
Technical Specifications
- Mean time to dangerous failure (MTTFD): 961 years (EN ISO 13849-1)
- Number of axis: 1
- Measuring range: 180°
- Resolution: ≤ 0.03°
- Static measurement accuracy: Typical 0.25°, max 0.4°
- Repeatability: 30 mV
- Temperature coefficient (zero point): ±0.03°/K
- Limit frequency: 2 Hz
- Sampling rate: 400 Hz
- Communication interface: Analog / Voltage
- Voltage output: 0 V to 10 V
- 0-set function via hardware pin: Yes
- Load resistance: ≥ 2 kΩ
- Status LEDs: 2x (green/red)
- Output signal error state: 0 V
- Initialization time: 250 ms
- Connection type: Cable, 5-wire, 0.3 m
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 30 mA @ 24 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Housing material: Plastic (PA12), glass-fiber reinforced
- Cable material: PUR
- EMC: EN 61326-1
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature range: -40 °C to +80 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- Single axis inertial sensor with 180° measuring range
- High resolution of ≤ 0.03° and typical static measurement accuracy of 0.25°
- Robust plastic housing (PA12) reinforced with glass fiber
- Wide operating temperature range from -40 °C to +80 °C
- High protection rating with IP66, IP67, IP68, and IP69K
- Short-circuit and reverse polarity protection
- Fast initialization time of 250 ms
- Status indication via dual green/red LEDs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine monitoring and diagnostics
- Position and angle measurement in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (<30 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TMS22E-PLJ180 inertial sensor is available for immediate purchase, ideal for industrial automation and safety applications.
