TMS88B-PKC360 | Inertial sensors
The SICK TMS88B-PKC360 is a high-precision inertial sensor offering a 360° measuring range, ideal for industrial safety and automation applications with robust IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

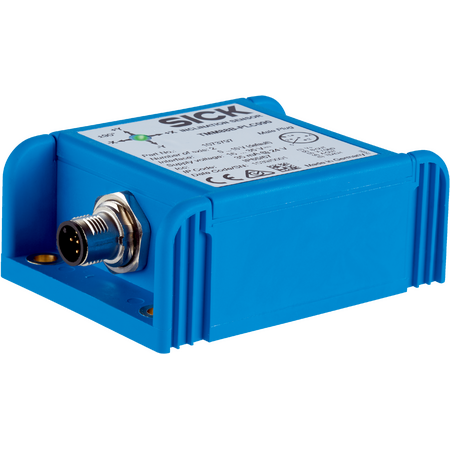

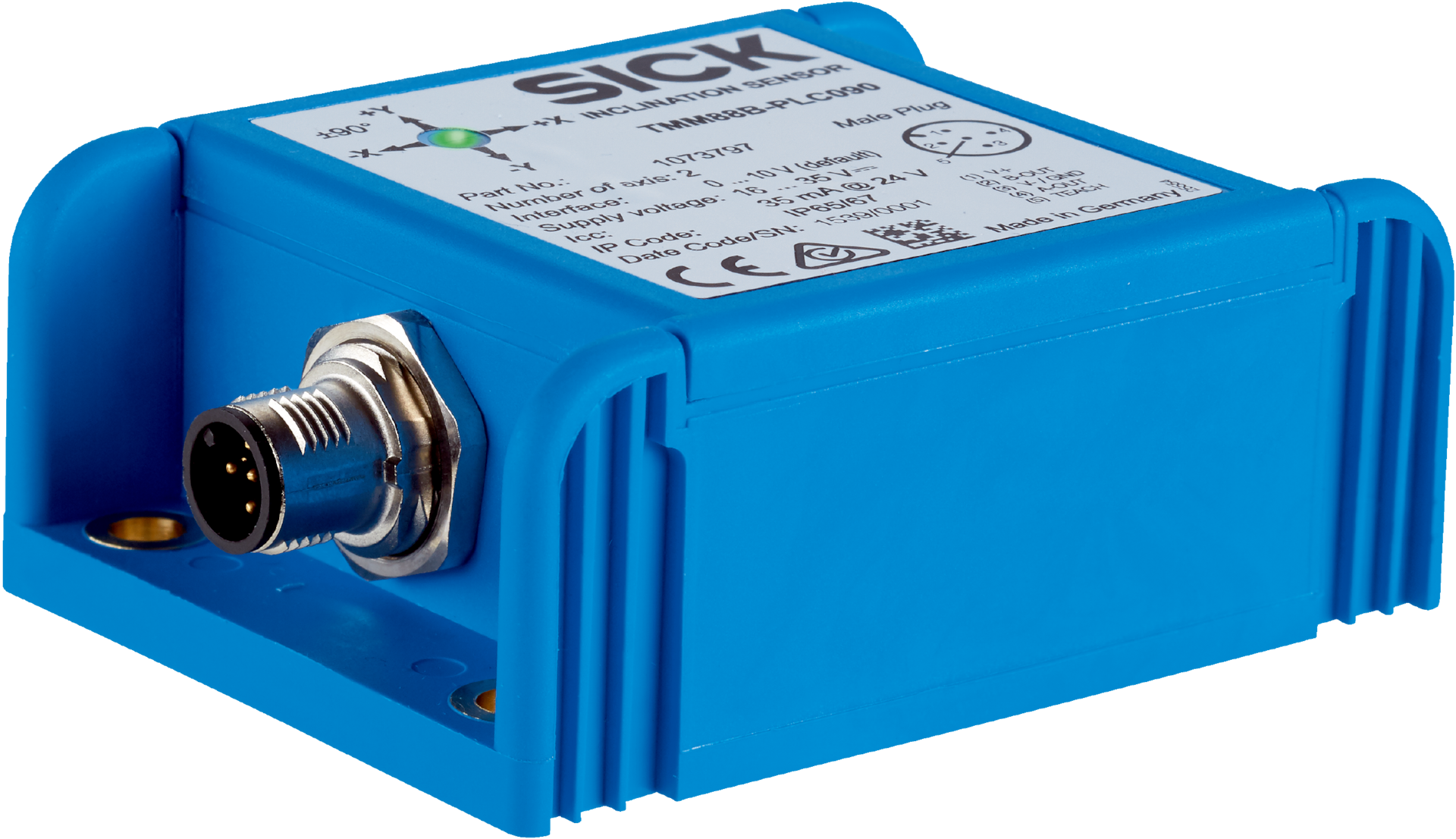

Product Name/Title: TMS88B-PKC360 | Inertial sensors
Brand: SICK
SKU: 1073794
Alternatively Known As: Inertial angle sensor, 360 degree inertial sensor, SICK angle sensor, TMS88B angle sensor
Technical Specifications
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: Typically ±0.15°, max ±0.25°
- Temperature coefficient (zero point): Typically ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz with digital filter
- Sampling rate: 80 Hz
- Communication interface: Analog / Current output (4 mA to 20 mA)
- Load resistance: ≤ 850 Ω
- Parameterising data: Measuring range, zeroset, limit frequency, preset value, inverting counting direction, axis assignment, free adjustable outbound
- Programmable via PGT-12-Pro
- Initialization time: 265 ms
- Connection type: Male connector, M12, 5-pin
- Supply voltage: 17 V DC to 35 V DC
- Current consumption: < 35 mA (+ Iloop) at 24 V
- Reverse polarity protection and short-circuit protection included
- Housing material: Plastic (PBT)
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- Single axis inertial sensor with 360° measuring range
- High resolution of 0.01° and static measurement accuracy typically ±0.15°
- Robust housing with IP65 and IP67 enclosure rating for harsh environments
- Wide operating temperature range from –40 °C to +80 °C
- Analog current output (4 mA to 20 mA) with programmable parameters
- Short-circuit and reverse polarity protection
- Fast initialization time of 265 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and robotics requiring precise angle measurement
- Safety-related monitoring systems
- Machine condition monitoring and control
- Navigation and positioning systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TMS88B-PKC360 inertial sensor is available for immediate purchase, ideal for industrial automation and safety applications.
