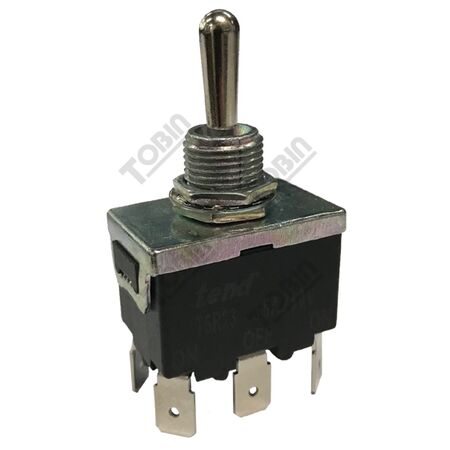

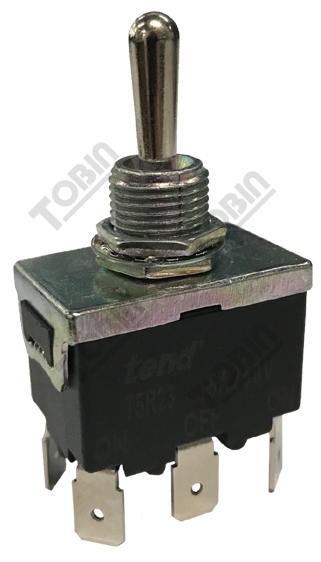

Toggle Switch 10A Double Pole On-Off-On | DPDT Configuration | Quick Connect Terminals | by Tobin
The Toggle Switch 10A Double Pole On-Off-On is perfect for control circuits requiring double pole switching. With a DPDT configuration and quick connect terminals, it ensures easy wiring and reliable operation. Ideal for industrial machinery control panels, this switch is designed for professional installation and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Toggle Switch 10A Double Pole On-Off-On | DPDT Configuration | Quick Connect Terminals | by Tobin
Brand: Tobin
SKU: T5R23A
Alternatively Known As: DPDT Toggle Switch, Double Pole Toggle Switch, On-Off-On Toggle Switch, Momentary Toggle Switch
Technical Specifications
- Current Rating: 15A
- Switch Type: DPDT (Double Pole Double Throw)
- Operation: On-Off-On with momentary on positions
- Terminals: Quick Connect
- Contact Material: Silver alloy
- Mounting: Panel mount
- Dimensions (H x L x W): 40mm x 20mm x 30mm
- Weight: 0.1 kg
Key Features
- Double pole double throw (DPDT) toggle switch
- On-Off-On switch configuration with momentary on positions
- Quick connect (QC) terminals for easy wiring
- Rated for 15A current
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Control circuits requiring double pole switching
- Industrial machinery control panels
- Electrical equipment requiring momentary and maintained switch positions
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin Toggle Switch 10A Double Pole On Off On is available for immediate purchase, ideal for industrial and control circuit applications.
