Tone & Probe PRO Electrical Wire Tracing Set | 5 Tone Cadences | 1000 Feet Range | Durable Probe with Work Light | @Each by Wattmaster
The Tone & Probe PRO Electrical Wire Tracing Set is designed for efficient wire tracing and testing, featuring a tone generator with five distinct cadences and a transmission range of over 1000 feet. Ideal for electricians and technicians, this set includes rugged ABN clips for secure cable grip and a durable probe with a work light for use in dark spaces, making it perfect for voice, data, and video systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tone & Probe PRO Electrical Wire Tracing Set | 5 Tone Cadences | 1000 Feet Range | Durable Probe with Work Light | @Each by Wattmaster
Brand: Wattmaster
SKU: A-VDV500-820
Alternatively Known As: Wire Tracer Kit, Tone Generator and Probe Set, Electrical Wire Tracing Tool, Cable Toner and Probe
Technical Specifications
- Tone generator with 5 distinct tone cadences
- Transmission range over 1000 feet
- Angled Bed of Nails (ABN) clips for secure cable grip
- RJ11 plug for telephone and RJ45 data jack connection
- Continuity and polarity testing with LED indicators
- Probe with 3.5 mm headphone jack
- Durable, replaceable non-metallic probe tip
- Work light on probe tip
- Includes 8 x AAA batteries
- Materials: Plastics, Metal, PCB Boards, LEDs
- Dimensions (H x L x W): 305mm x 178mm x 76mm
- Weight: 0.37 kg
Key Features

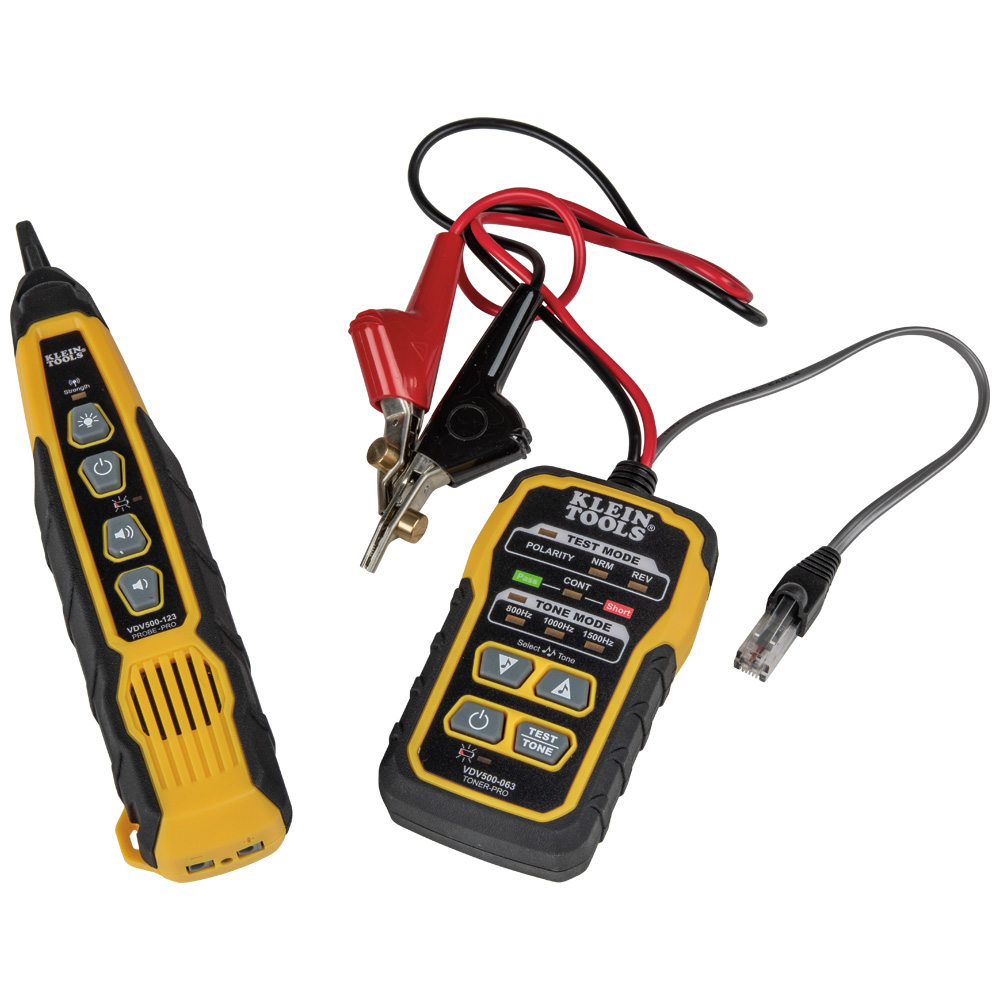

- Includes professional grade analogue tone generator and tracing probe for open-ended, non-energised wiring

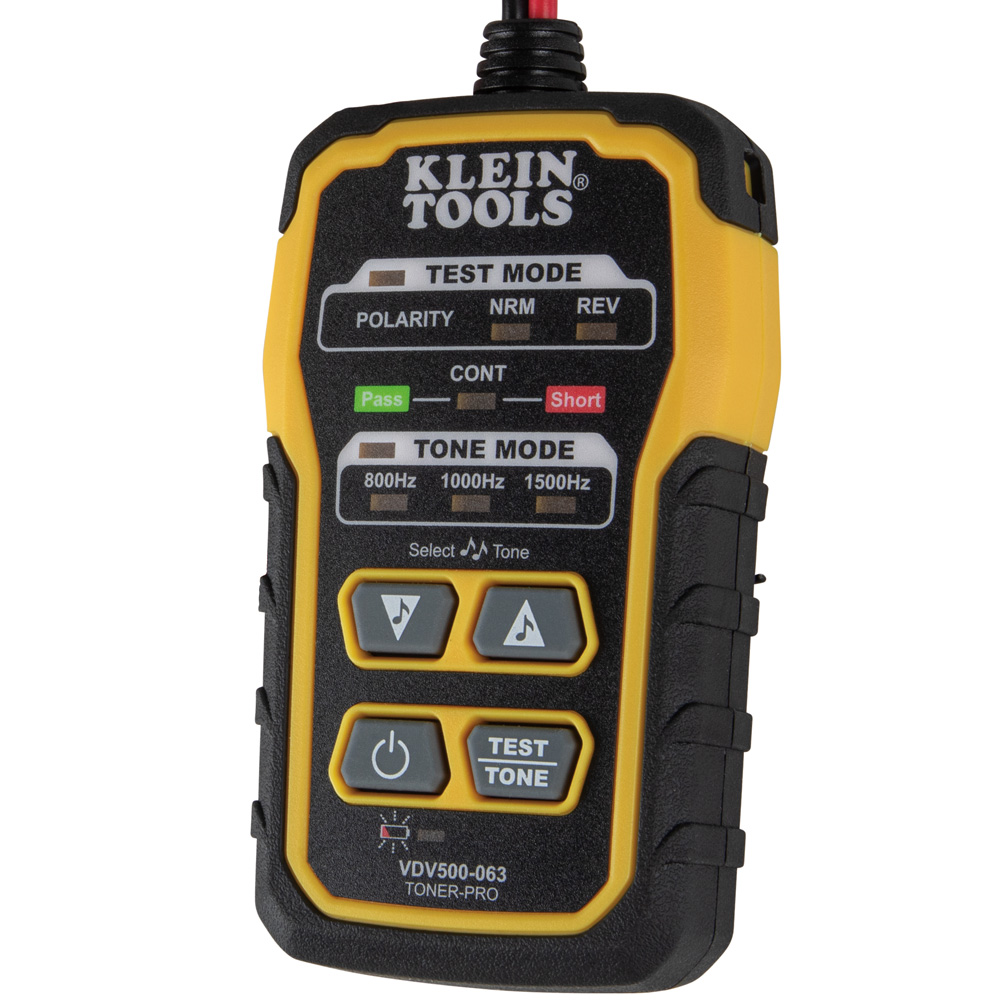

- Tone generator emits five distinct tone cadences and transmits over 1000 feet
- Rugged Angled Bed of Nails (ABN) clips securely grip cables
- RJ11 plug for easy connection to telephone and RJ45 data jacks
- Tests continuity and polarity with clearly labelled LED indicators

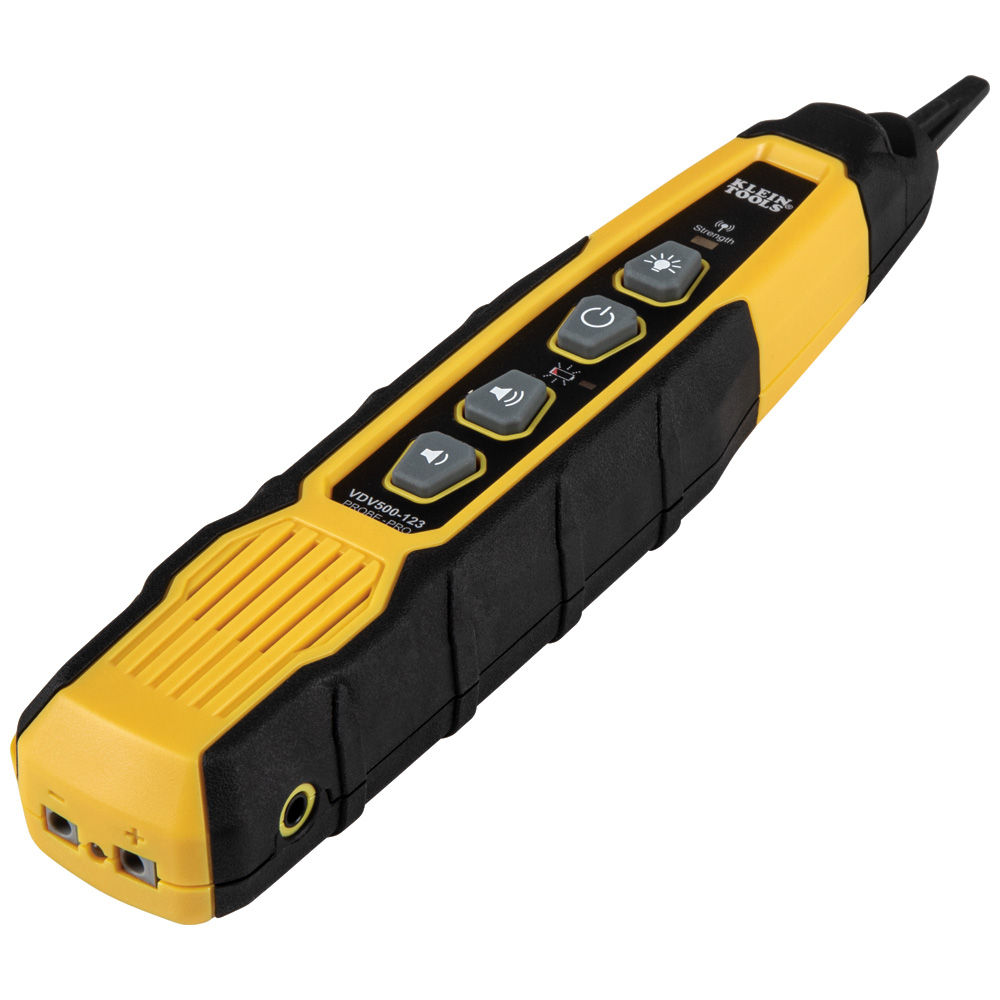

- Probe features 3.5 mm headphone jack for noisy environments
- Durable, non-metallic, replaceable conductive probe tip
- Work light on probe tip for use in dark spaces
- Terminal block on probe to confirm toned pair
- Includes 8 AAA batteries and custom padded zipper pouch for storage
Professional Installation Requirements
- No professional installation required; designed for use by electricians and technicians with basic training in wire tracing and testing.
Applications

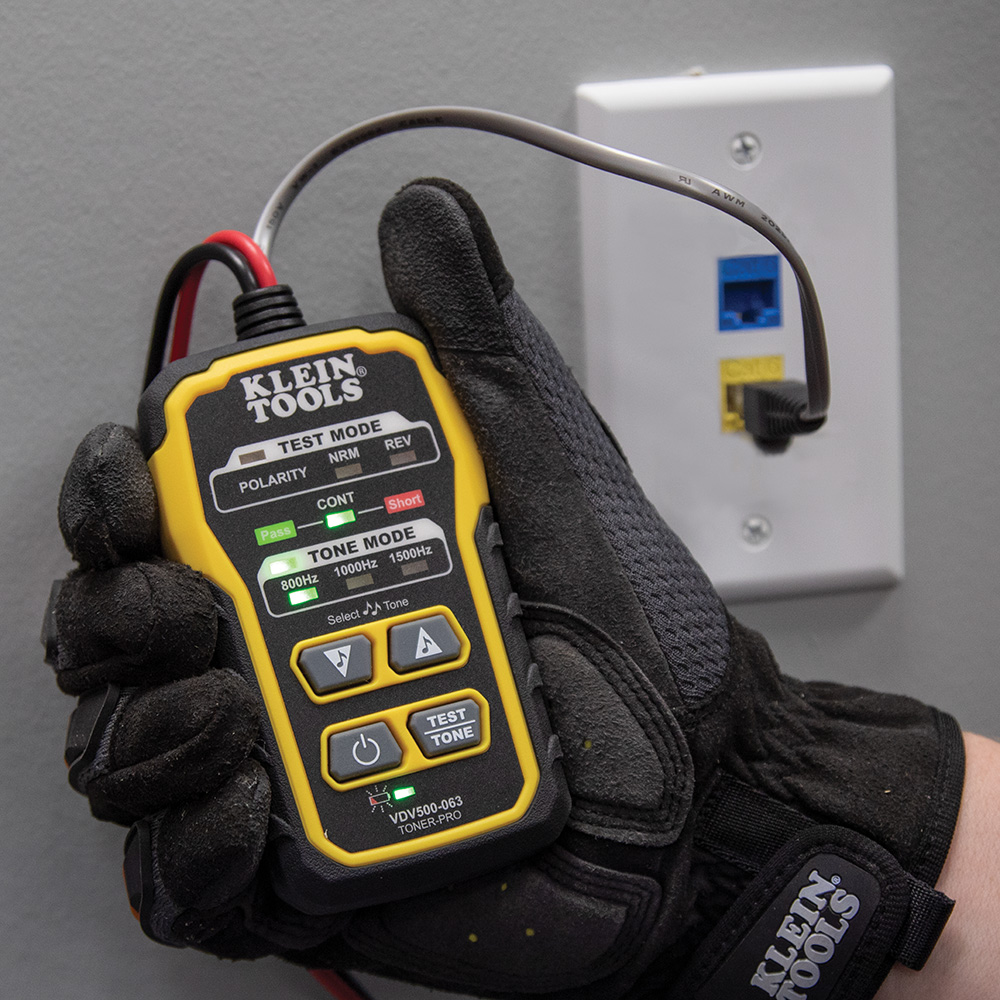

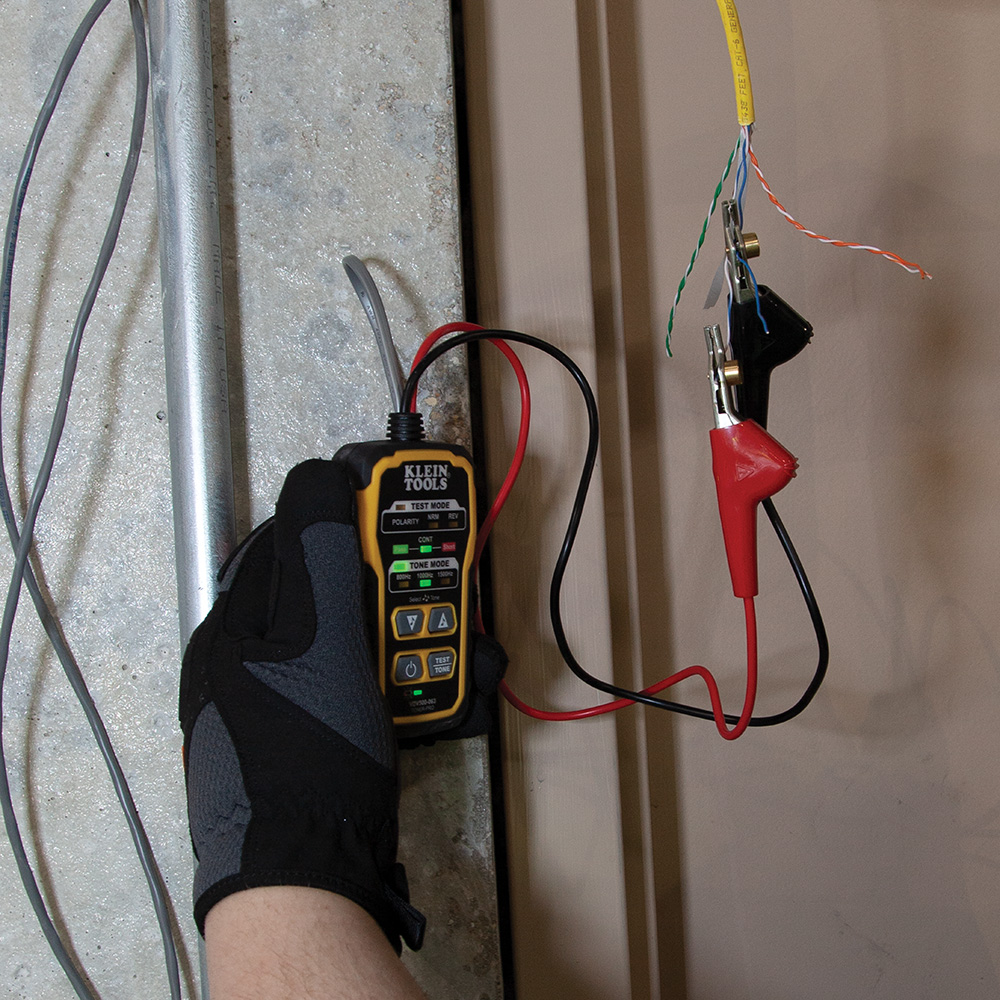

- Wire toning and tracing on common wiring systems
- Testing continuity and polarity in telephone and data wiring
- Tracing wires in distribution blocks without disturbing other services
- Use in noisy environments with headphone jack
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable tool reduces need for multiple devices
- Battery-powered with included batteries to reduce waste from separate purchases
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Tone & Probe PRO Electrical Wire Tracing Set is available now for immediate purchase. Ideal for professional electricians and technicians performing wire tracing and testing in voice, data, and video systems.
