Top Hat Screamer 12V 120dB Warble Tone Ness

BRAND: Ness
SKU: 100-238
$12.90 List price: $17.20
+ −
30 Days Return Electricians Unlock Trade Access

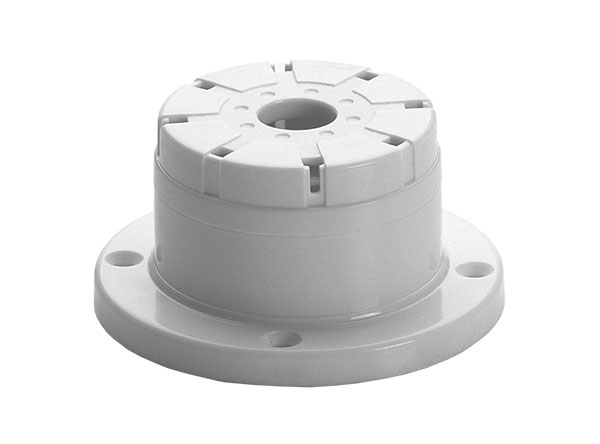

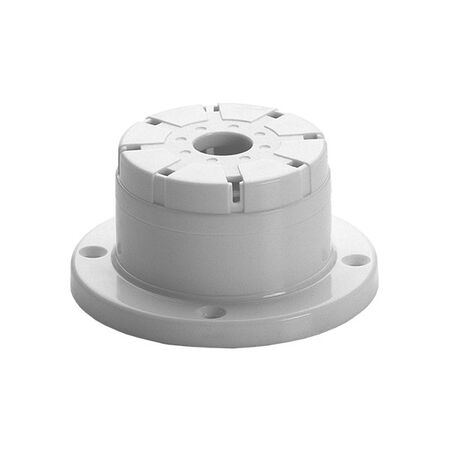

Ness top hat screamer features 12V operation, 120dB output and a warble tone. Ideal for alarm systems and security installs.

Alternatively Known As: 12V Internal Screamer, Piezo Screamer, Alarm Sounder, Warble Tone Screamer

Technical Specifications
  • Product Type: 12V internal alarm screamer
  • Tone: Warble
  • Sound Pressure Level: 120dB ±5dB at 30cm
  • Operating Voltage: 12VDC nominal; 6VDC minimum to 15VDC maximum
  • Current Draw: 130mA at 12VDC
  • Construction: ABS plastic
  • Colour: White
  • Wire Lead Length: 400mm
  • Dimensions (H x L x W): 40mm x 85mm x 85mm
  • Weight: 0.1 kg
Key Features
  • High-output 120dB alarm sounder
  • Warble tone for clear audible alarm indication
  • Suitable for 12V security and intruder alarm systems
  • Wide operating voltage range from 6VDC to 15VDC
  • Low current draw of 130mA at 12VDC
  • Compact top hat design for internal mounting
  • 400mm wire leads supplied
Professional Installation Requirements
  • Installation should be completed by a suitably qualified security installer. Connect only to a compatible low-voltage 12VDC alarm system and follow the alarm panel and local wiring requirements.
Applications
  • Intruder alarm systems
  • Security alarm panels
  • Internal alarm sounder installations
  • Commercial and residential security systems
  • Security upgrades and replacement sounders
Standards & Compliance
  • AS/NZS 2201.1:2007 may apply to the design, installation, commissioning and maintenance of the complete intruder alarm system; product-specific standards compliance is not stated by the manufacturer.
Environmental Benefits
  • Low operating current of 130mA at 12VDC helps minimise energy consumption during alarm operation
  • Durable ABS construction supports extended service life and reduces replacement waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security equipment distributors.
