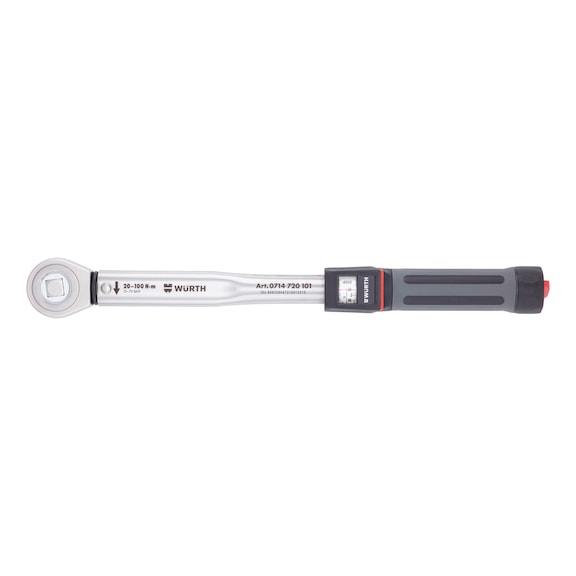

1/2 Inch Torque Wrench | 20-100 Nm Range | High Accuracy ±3% | Compact Design | by Wurth
The 1/2 inch torque wrench offers a torque measuring range of 20-100 Nm, making it perfect for precise torque tightening in automotive and mechanical repairs. With a high accuracy of ±3% and a compact ratchet head design, it’s ideal for use in confined spaces. The ergonomic, non-slip handle ensures comfortable use, while the audible indication alerts you when the desired torque is reached.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2 Inch Torque Wrench | 20-100 Nm Range | High Accuracy ±3% | Compact Design | by Wurth
Brand: Wurth
SKU: 714720101
Alternatively Known As: Torque spanner, Torque ratchet wrench, 1/2 inch torque wrench, Precision torque tool
Technical Specifications
- Tip size: 1/2 inch
- Torque measuring range: 20-100 Nm (15-73 lbf.ft)
- Number of turns from min. to max. torque: 17
- Design: 72 teeth with 5 degree angle of rotation
- Scale value torque main scale: 1 Nm
- Torque measuring accuracy: ±3%
- Suitable for right-hand and left-hand tightening
- Ratchet head height: 24 mm
- Ratchet head height with square: 39 mm
- Handle diameter: 37 mm
- Ratchet head width: 45 mm
- Total length: 388 mm
- Dimensions (H x L x W): 39mm x 388mm x 45mm
- Weight: 1.2 kg
Key Features
- High trigger accuracy of ±3%, exceeding standard requirements
- Audible and perceptible indication when torque value is reached
- Large double scale in Nm and lbf-ft for easy reading
- Simple torque adjustment by twisting the handle end with locking knob
- Compact ratchet head height of 24 mm for confined spaces
- Ergonomic, non-slip 2C handle for comfortable use and power transmission
- Push-through 1/2 inch square mount for quick socket changes
- Suitable for both right-hand and left-hand tightening
- Robust, wear-resistant, moisture- and oil-resistant packaging made from 100% PCR plastic
Professional Installation Requirements
- No professional installation required. Use by trained personnel recommended for accurate torque application.
Applications
- Precise torque tightening for mechanical and automotive repairs
- Suitable for both clockwise and anti-clockwise tightening
- Ideal for use in confined spaces due to compact ratchet head design
- General measuring and tightening tasks in industrial and workshop settings
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with ISO 6789-1 for hand torque screwdriving tools
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic (PCR), reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Torque Wrench 1/2 inch 20-100 Nm is available now for immediate purchase. Ideal for precise torque applications in automotive, mechanical, and industrial settings.
