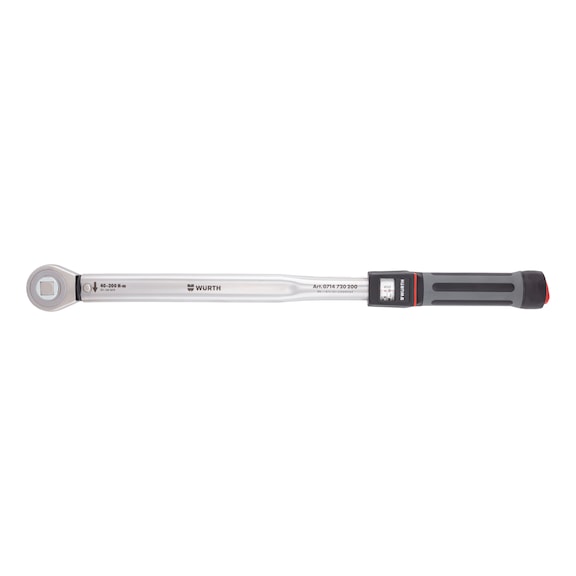

1/2 Inch Torque Wrench | 40-200 Nm Range | ±3% Accuracy | Compact Design | by Wurth
The 1/2 inch torque wrench offers a torque range of 40-200 Nm, ensuring precise torque application for mechanical and automotive repairs. With a high trigger accuracy of ±3% and a compact ratchet head design, it's perfect for both professional and DIY use in tight spaces. The ergonomic handle provides comfort during use, making it an essential tool for any technician.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2 Inch Torque Wrench | 40-200 Nm Range | ±3% Accuracy | Compact Design | by Wurth
Brand: Wurth
SKU: 714720200
Alternatively Known As: Torque spanner, torque ratchet wrench, adjustable torque wrench, 1/2 inch torque wrench
Technical Specifications
- Tip size: 1/2 inch
- Torque range: 40-200 Nm (30-146 lbf.ft)
- Number of turns from min. to max. torque: 18
- Ratchet design: 72 teeth with 5 degree angle of rotation
- Torque measuring accuracy: ±3%
- Scale value torque main scale: 2 Nm
- Suitable for right-hand and left-hand tightening
- Ratchet head height: 24 mm (39 mm with square)
- Handle diameter: 37 mm
- Total length: 488 mm
- Handle length: 167 mm
- Length of lever: 395 mm
- Complies with ISO 6789-1 standard
- Dimensions (H x L x W): 39mm x 488mm x 45mm
- Weight: 1.5 kg
Key Features
- High trigger accuracy of ±3%, exceeding standard requirements
- Audible and tactile indication when torque value is reached
- Large double scale in Nm and lbf-ft for easy reading
- Simple torque adjustment by twisting the handle end with locking knob
- Compact ratchet head height of 24 mm for tight spaces
- Ergonomic, non-slip 2C handle for comfortable use
- Push-through 1/2 inch square mount for quick socket changes
- Suitable for both right-hand and left-hand tightening
- Robust, wear-resistant packaging made from 100% post-consumer recycled plastic
Professional Installation Requirements
- No professional installation required; recommended for use by trained personnel to ensure accurate torque application.
Applications
- Precise torque tightening for mechanical and automotive repairs
- Suitable for both clockwise and anti-clockwise tightening
- Ideal for use in confined spaces due to compact ratchet head design
- Professional and DIY use in assembly and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with ISO 6789-1 for hand torque screwdriving tools
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic reduces environmental impact
- Durable design extends tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Torque Wrench 1/2 inch 40-200 Nm is available for immediate purchase, ideal for precision torque applications in mechanical and automotive maintenance.
