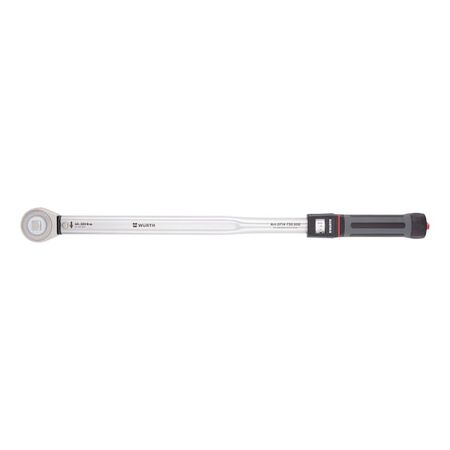

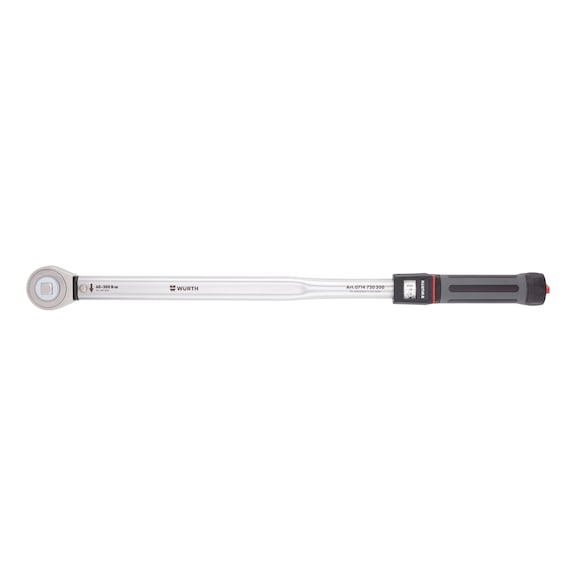

1/2 Inch Torque Wrench | 60-300 Nm Range | ±3% Accuracy | Ergonomic Design | by Wurth
The 1/2 inch Torque Wrench is designed for precise torque tightening in mechanical and automotive applications, featuring a torque range of 60-300 Nm and an accuracy of ±3%. With an ergonomic non-slip handle and compact ratchet head, it's perfect for both professional and DIY use, ensuring reliable performance in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2 Inch Torque Wrench | 60-300 Nm Range | ±3% Accuracy | Ergonomic Design | by Wurth
Brand: Wurth
SKU: 714720300
Alternatively Known As: Torque spanner, Torque ratchet wrench, 1/2 inch torque wrench, Adjustable torque wrench
Technical Specifications
- Tip size: 1/2 inch
- Torque measuring range: 60-300 Nm (45-220 lbf.ft)
- Number of turns from min. to max. torque: 16
- Design: 60 teeth with 6 degree angle of rotation
- Scale value torque main scale: 5 Nm
- Torque measuring accuracy: ±3%
- Suitable for right-hand and left-hand tightening
- Ratchet head height: 24 mm
- Ratchet head height with square: 39 mm
- Handle diameter: 37 mm
- Ratchet head width: 50 mm
- Length: 571 mm
- Handle length: 167 mm
- Length of lever: 475 mm
- Complies with ISO 6789-1 standard
- Dimensions (H x L x W): 39mm x 571mm x 50mm
- Weight: 1.5 kg
Key Features
- High trigger accuracy of ±3%, exceeding standard requirements
- Audible and tactile indication when torque value is reached
- Large double scale in Nm and lbf-ft for easy reading
- Simple torque adjustment by twisting the handle end
- Locking knob to secure set torque values
- Compact ratchet head height of 24 mm for tight spaces
- Ergonomic, non-slip 2C handle for comfort and power transmission
- Push-through 1/2 inch square mount for quick socket changes
- Suitable for right-hand and left-hand thread tightening
- Robust packaging made from 100% post-consumer recycled plastic
Professional Installation Requirements
- No professional installation required. Use by trained personnel recommended for accurate torque application.
Applications
- Precise torque tightening for mechanical and automotive applications
- Suitable for both clockwise and anti-clockwise tightening
- Ideal for use in confined spaces due to compact ratchet head design
- Professional and DIY use in assembly and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with ISO 6789-1 for hand torque screwdriving tools
Environmental Benefits
- Product packaging made from 100% post-consumer recycled plastic
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Torque Wrench 1/2 inch 60-300 Nm is available for immediate purchase. Ideal for precise torque applications in mechanical, automotive, and industrial settings.
