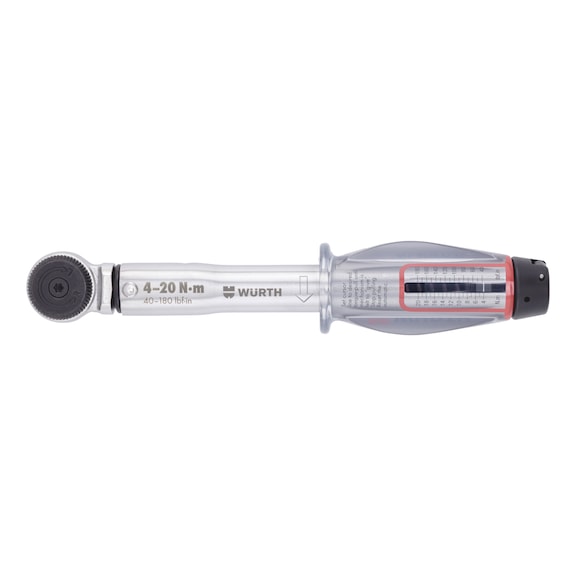

Torque Wrench 1/4 inch | 4-20 Nm Range | 72 Teeth Design | Slim & Compact | by Wurth
The Torque Wrench 1/4 inch is designed for precision torque tightening in mechanical and automotive repair, featuring a torque measuring range of 4-20 Nm and a 72 teeth design for easy operation. With an ergonomic handle and ±3% accuracy, it's perfect for assembly work requiring accurate torque control, especially in confined spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Torque Wrench 1/4 inch | 4-20 Nm Range | 72 Teeth Design | Slim & Compact | by Wurth
Brand: Wurth
SKU: 714720020
Alternatively Known As: Torque Wrench 1/4 inch, Slim Torque Wrench, Reversible Torque Wrench, Precision Torque Wrench
Technical Specifications
- Tip size: 1/4 inch
- Torque measuring range: 4-20 Nm (40-180 lbf.in)
- Number of turns from min. to max. torque: 21
- Design: 72 teeth with 5 degree angle of rotation
- Suitable for right-hand tightening only
- Scale value torque: 1 Nm
- Torque measuring accuracy: ±3%
- Length: 219 mm
- Handle length: 96 mm
- Ratchet head height with square: 26 mm
- Handle diameter: 40 mm
- Ratchet head width: 30 mm
- Complies with ISO 6789-1 for hand torque screwdriving tools
- Dimensions (H x L x W): 26mm x 219mm x 40mm
- Weight: 0.5 kg
Key Features
- Precise tightening with high trigger accuracy of ±3%
- Audible and perceptible indication when torque value is reached
- Easy-to-read double scale with Nm and lbf-in
- Simple torque adjustment by twisting the handle end
- Compact, slim design for working in confined spaces
- Ergonomically shaped handle with comfortable grip
- Quick switch between clockwise and anti-clockwise rotation
- Robust, wear-resistant, moisture- and oil-resistant packaging made from 100% PCR plastic
Professional Installation Requirements
- No professional installation required; suitable for use by trained technicians and professionals.
Applications
- Precision torque tightening in mechanical and automotive repair
- Assembly work requiring accurate torque control
- Use in confined spaces due to compact design
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with ISO 6789-1 (referenced for torque wrench standards)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic (PCR), reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Compact Slim Torque Wrench is available for immediate purchase, ideal for precision torque applications in mechanical and assembly work.
