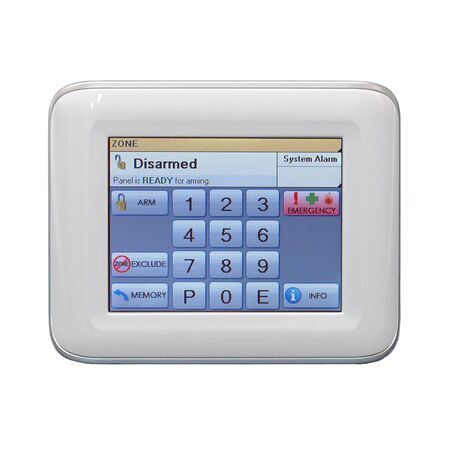

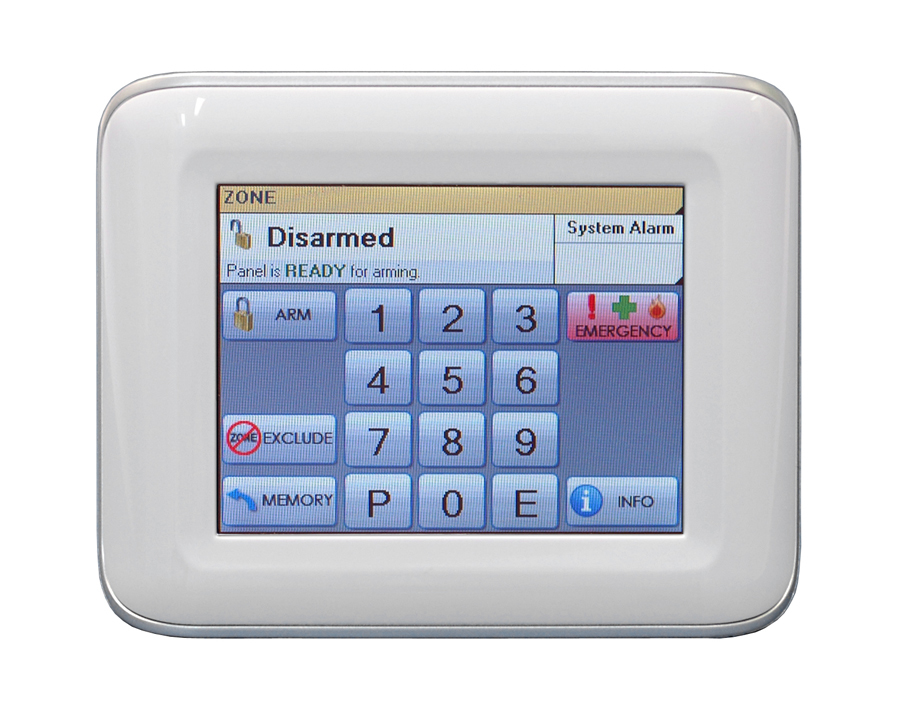

Touch Screen Keypad Gen2 to Suit D8X/D16X Ness

BRAND: Ness
SKU: 106-101
$227.40 List price: $303.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness Gen2 touch screen keypad features user-friendly, intuitive controls. Ideal for D8X and D16X alarm systems.

Alternatively Known As: Ness Navigator Gen2 Keypad, Ness 106-101 Touch Screen Keypad, Alarm System Touchscreen Keypad

Technical Specifications
  • Part Number: 106-101
  • Display: 3.5-inch colour LCD
  • Display Resolution: 320 x 240 pixels
  • Touch Interface: Touch-sensitive surface
  • Operating Voltage: 12VDC supplied by the control panel
  • Current Draw: 25mA at 50% backlighting; 50mA at 100% backlighting
  • Data Connection: 2-wire proprietary Ness data bus
  • Maximum Keypads: Up to 4 Navigator keypads per control panel
  • Maximum Cable Distance: 100m including cable to all keypads
  • Panel Compatibility: Ness D8X and D16X Version 7 and later, DPlus, and D8/D16 XCEL 3G and 4G
  • Included Components: Keypad, wiring loom and manual
  • Dimensions (H x L x W): 86mm x 108mm x 15mm
  • Weight: 0.3 kg
Key Features
  • Clear plain-English user guidance and prompts
  • Intuitive touchscreen operation for arming and disarming
  • Displays zones with user-defined text descriptions
  • Provides access to emergency alarms and programmable outputs
  • Compatible with selected Ness D8X, D16X, DPlus and XCEL control panels
  • Protective screen film supplied
  • Made in Australia
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security technician. The keypad is hardwired to the compatible Ness alarm control panel using the supplied loom and must be installed in accordance with the panel manufacturer's instructions and applicable security-system requirements.
Applications
  • Residential intruder alarm systems
  • Commercial security alarm systems
  • Ness D8X and D16X alarm panel upgrades
  • Ness DPlus and compatible XCEL alarm installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – Intruder alarm systems: client premises design, installation, commissioning and maintenance; applicable to the completed alarm system rather than stated as product-specific certification.
Environmental Benefits
  • Ness lists RoHS compliance for its product range, supporting restriction of hazardous substances in electronic equipment
  • Low operating current of 25–50mA helps minimise power consumption
  • Durable, serviceable keypad design can reduce replacement frequency and electronic waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions. ([ness.com.au](https://ness.com.au/product-warranty))

Available Now

Available through Ness and authorised Australian security and electrical distributors.
